VDO Oil Pressure Sensor, 0–80 PSI, 1/4-18 NPTF, with 8 PSI Alert

The VDO oil pressure sensor with a 1/4-18 NPTF connection is used to measure oil pressure. It operates in the range of 0 to 80 PSI and outputs a resistive signal intended for a compatible gauge.

The 10 to 184 ? outlet must match the electrical specifications of the gauge or indicator being used. An identical display range alone is not sufficient to guarantee compatibility. The 8 PSI ± 2.0 PSI alert contact provides a function separate from the measurement, for controlling a compatible warning light.

Technical Specifications

• Brand: VDO
• Manufacturer Part Number: 360-081-030-020C
• Type: Oil pressure sensor
• Measurement Range: 0 to 80 PSI
• Thread: 1/4-18 NPTF
• Resistive signal: 10 to 184 ?
• Operating voltage: 6 to 24 V DC
• Contact d’alerte : 8 PSI ± 2.0 PSI
• Type of mass: Mass via probe body
• Measurement connection: M4 plastic knurled nut
• Alarm contact connection: M4 plastic knurled nut

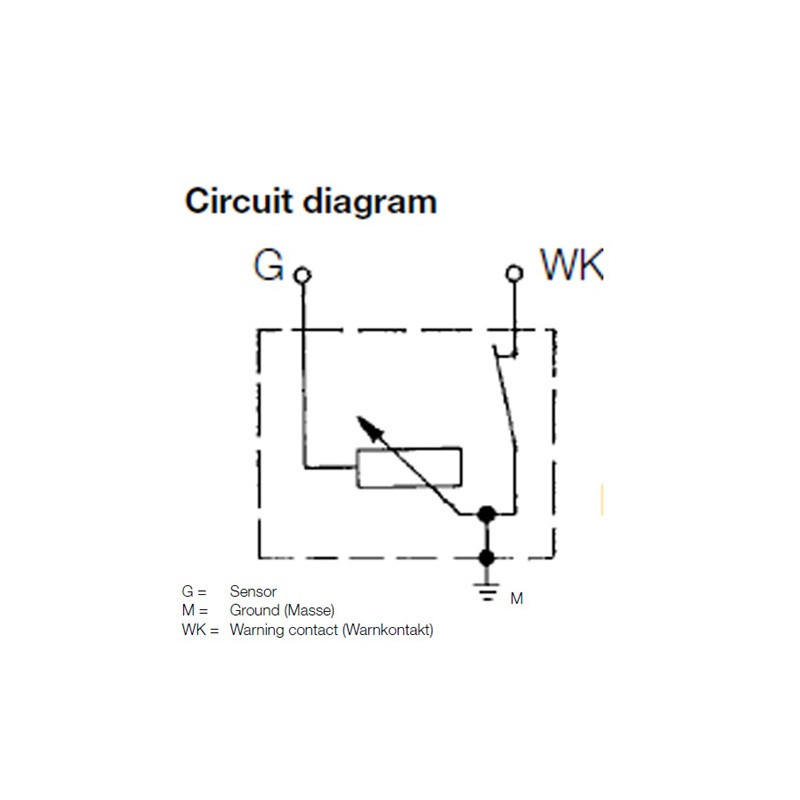

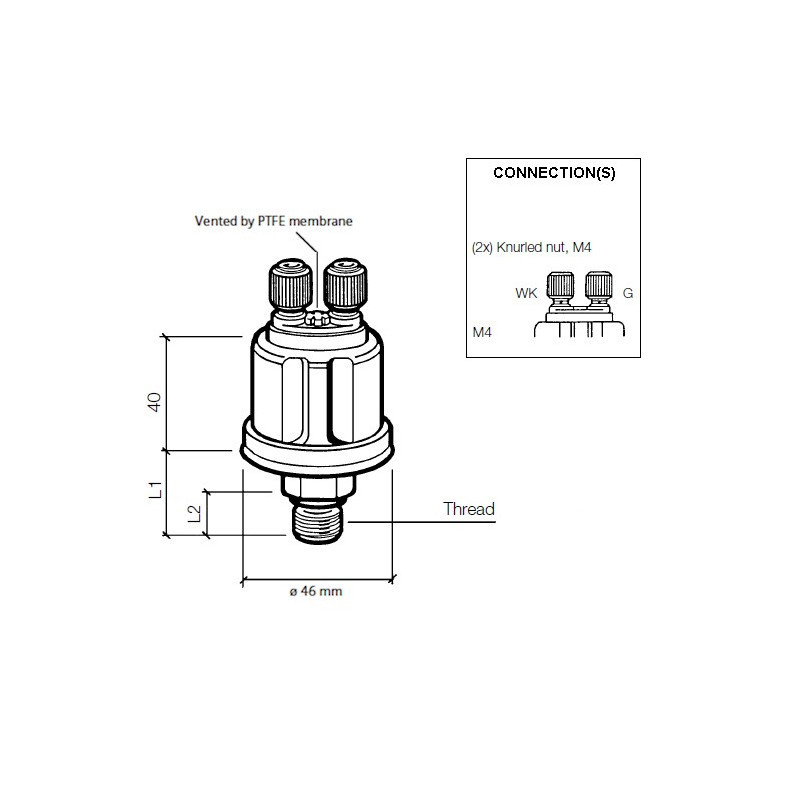

• Threaded length L2: 15.3 mm
• Thread and hex length L1: 23.8 mm
• Contact operation: Closes when pressure drops

Compatibility and Mounting

Check the 1/4-18 NPTF thread, the resistance curve, and the connection before mounting. The body must maintain electrical continuity with the circuit ground.
