VDO Oil Pressure Sensor, 0–10 bar, 1/8-27 NPTF, with 0.5 bar alert

The VDO oil pressure sensor with a 1/8-27 NPTF connection is used to measure oil pressure. It operates in the range of 0 to 10 bar and outputs a resistive signal intended for a compatible gauge.

The 10 to 184 ? outlet must match the electrical specifications of the gauge or indicator being used. An identical display range alone is not sufficient to guarantee compatibility. The 0.50 bar ± 0.20 bar alarm contact provides a function separate from the measurement, for controlling a compatible warning light.

Technical Specifications

• Brand: VDO
• Manufacturer Part Number: 360-081-030-052C
• Type: Oil pressure sensor
• Measurement range: 0 to 10 bar
• Thread: 1/8-27 NPTF

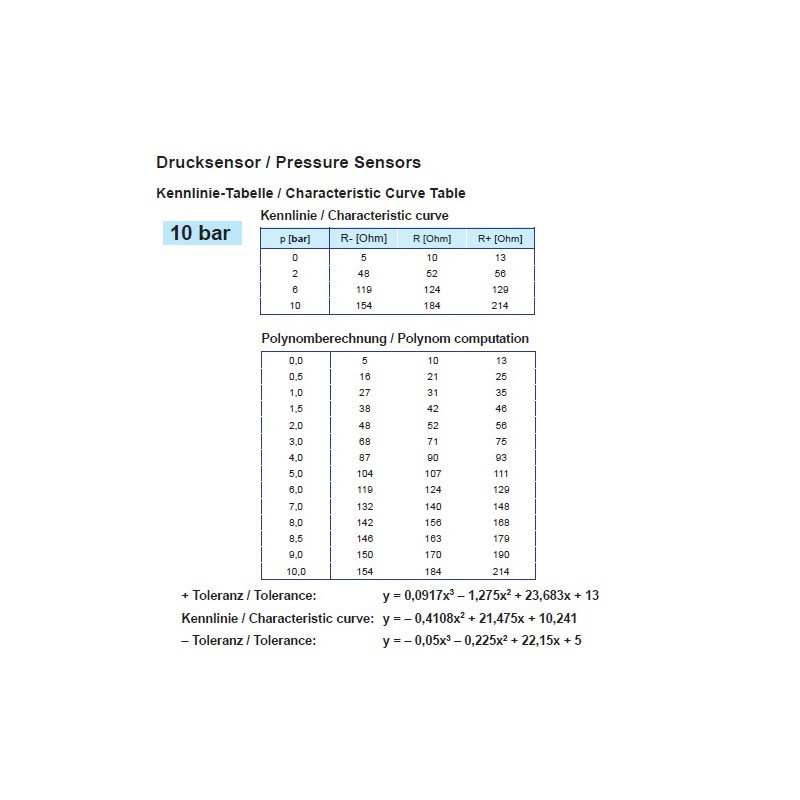

• Resistive signal: 10 to 184 ?
• Operating voltage: 6 to 24 V DC
• Contact d’alerte : 0.50 bar ± 0.20 bar

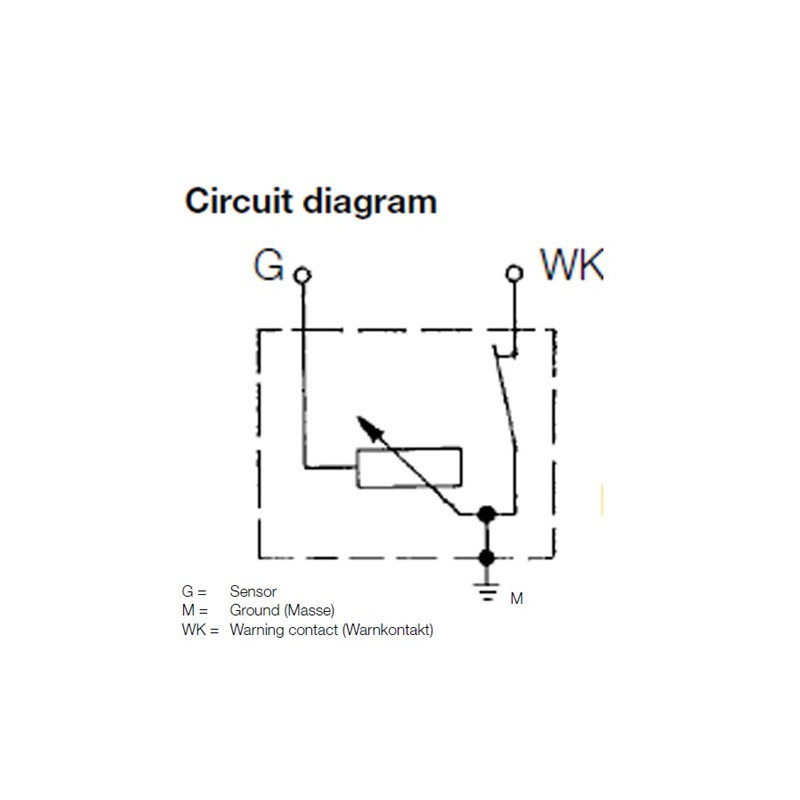

• Type of grounding: Grounded through the probe body

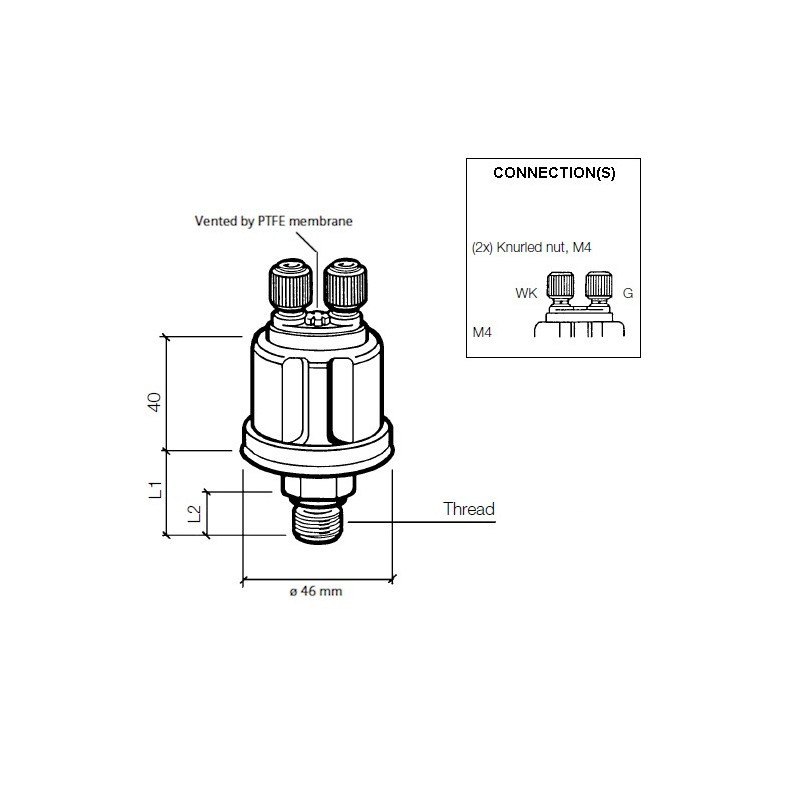

• Measurement connection: M4 plastic knurled nut
• Alarm contact connection: M4 plastic knurled nut
• Threaded length L2: 11 mm
• Thread and hex length L1: 19.5 mm
• Contact operation: Closes when pressure drops

Compatibility and Mounting

Check the 1/8-27 NPTF thread, the resistance curve, and the connection before mounting. The body must maintain electrical continuity with the circuit ground.
