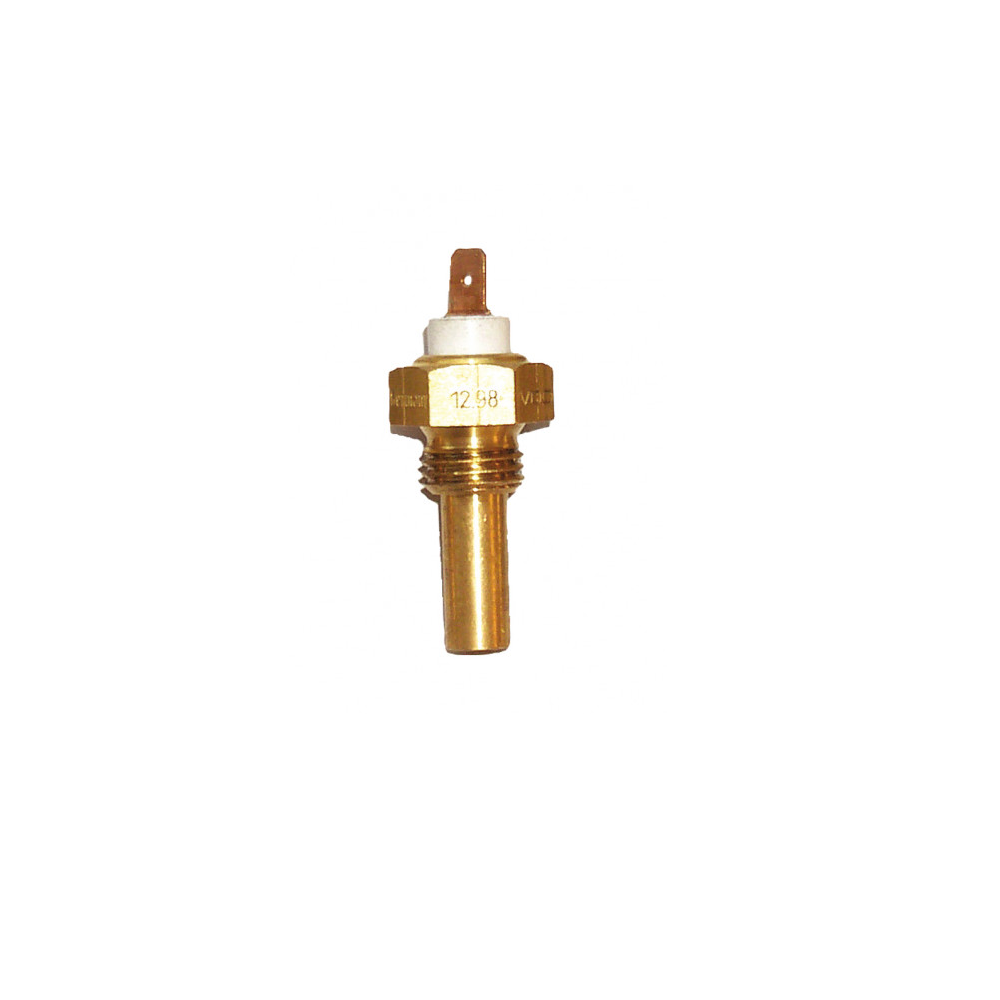

VDO Cooling Fluid Temperature Sensor, +40 to 120 °C, 1/8-27 NPTF
Reference:
V-005001
Supplier Ref.:
A2C5218491780
The VDO cooling fluid temperature sensor with a 1/8-27 NPTF connection is used to measure cooling fluid temperature. It operates within the range of +40 to 120 °C and outputs a resistive signal intended for a compatible temperature indicator.

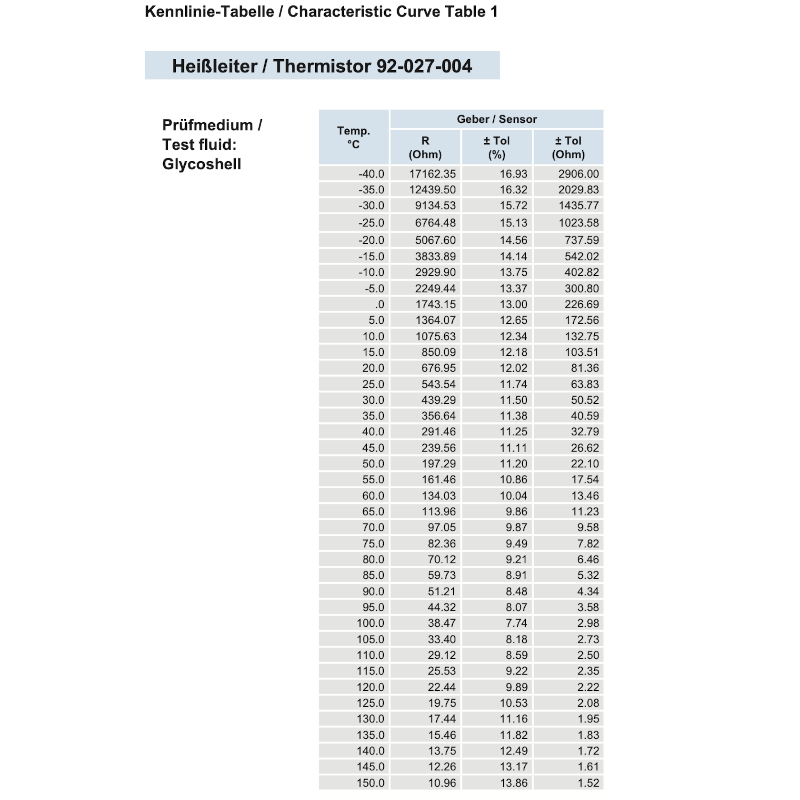

The outlet range of 287.4 to 22.7 ? must match the electrical specifications of the gauge or indicator being used. An identical display range alone is not sufficient to guarantee compatibility. This version does not include an alarm contact.
Technical Specifications
- Brand: VDO
- Manufacturer Part Number: A2C5218491780
- Type: Cooling fluid temperature sensor
- Measurement range: +40 to 120 °C
- Thread: 1/8-27 NPTF
- Resistive signal: 287.4 to 22.7 ?
- Operating voltage: 6 to 24 V DC
- Alarm contact: None
- Type of ground: Ground via probe body

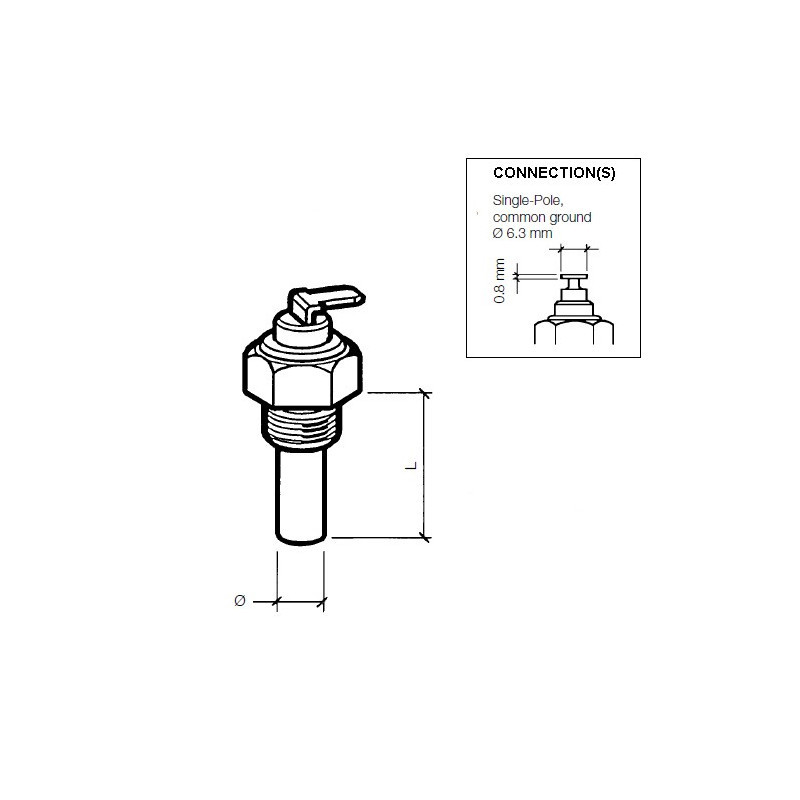

- Measurement connection: T-type flat plug, 6.3 x 0.8 mm
Compatibility and Mounting
Check the 1/8-27 NPTF thread, the resistance curve, and the connection before mounting. The probe body must maintain electrical continuity with the circuit ground.
-
Sensor typeWater Temperature
