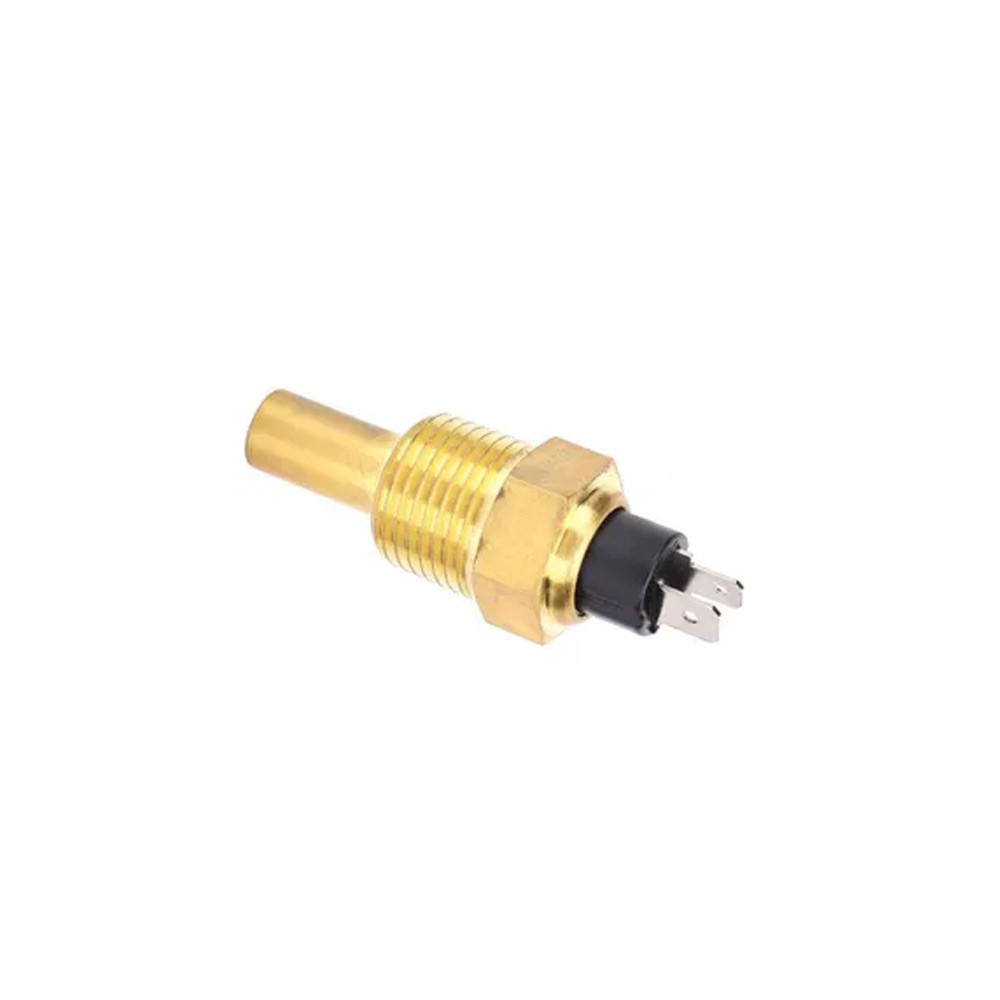

VDO Cooling Fluid Temperature Sensor, +40 to 120 °C, M14×150
Reference:
V-323805001001N
Supplier Ref.:
323-805-001-001N
Cooling fluid temperature measurement with this VDO cooling fluid temperature sensor is based on a resistive signal ranging from 287.4 to 22.7 ?. This model covers temperatures from +40 to 120 °C and uses an M14×150 connector.
The 287.4 to 22.7 ? outlet must match the electrical specifications of the gauge or indicator being used. An identical display range alone is not sufficient to guarantee compatibility. This version does not include an alarm contact.
Technical Specifications
- Brand: VDO
- Manufacturer Part Number: 323-805-001-001N
- Type: Cooling fluid temperature sensor
- Measurement range: +40 to 120 °C
- Thread: M14×150
- Resistive signal: 287.4 to 22.7 ?
- Operating voltage: 6 to 24 V DC
- Alarm contact: None

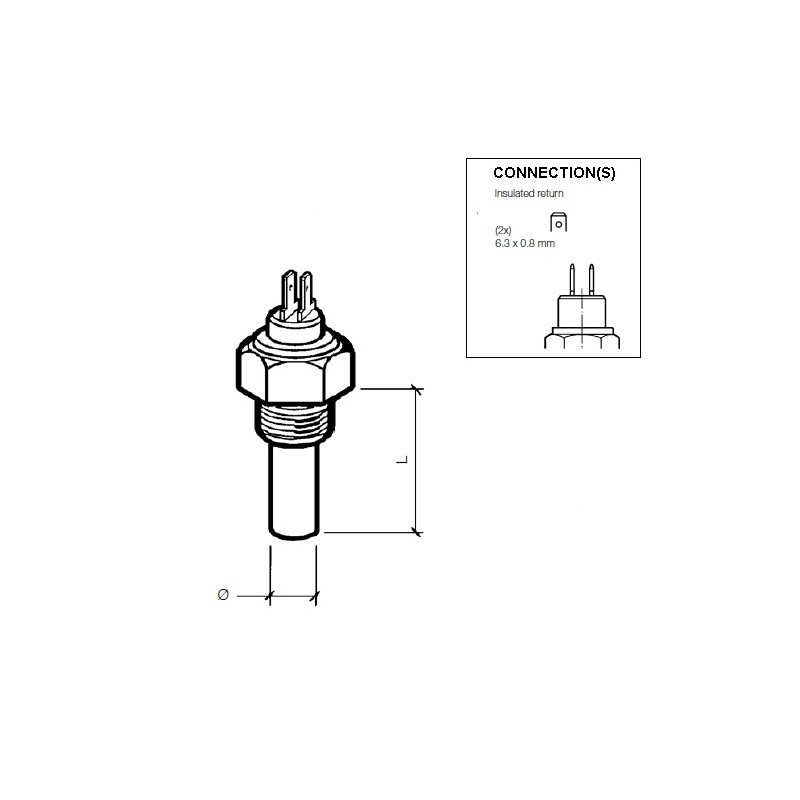

- Type of ground: Signal return isolated from ground
- Measurement connection: 6.3 x 0.8 mm flat plug
Compatibility and Mounting
Check the M14×150 thread, the resistance curve, and the connection before mounting. Make the connection according to the instructions for the probe and the instrument.
