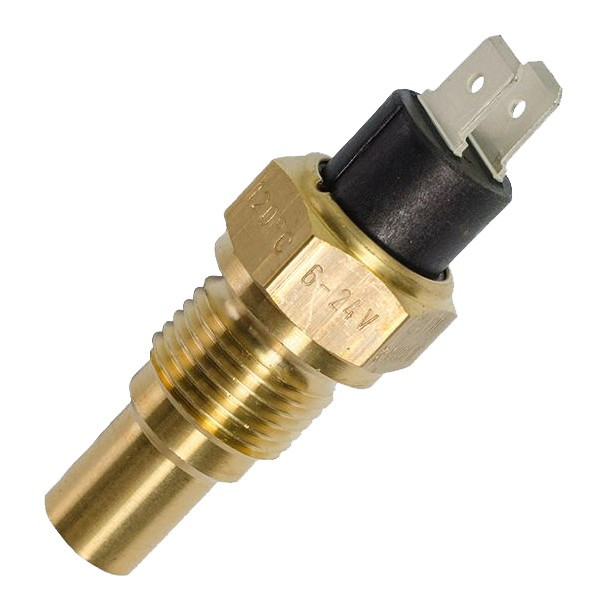

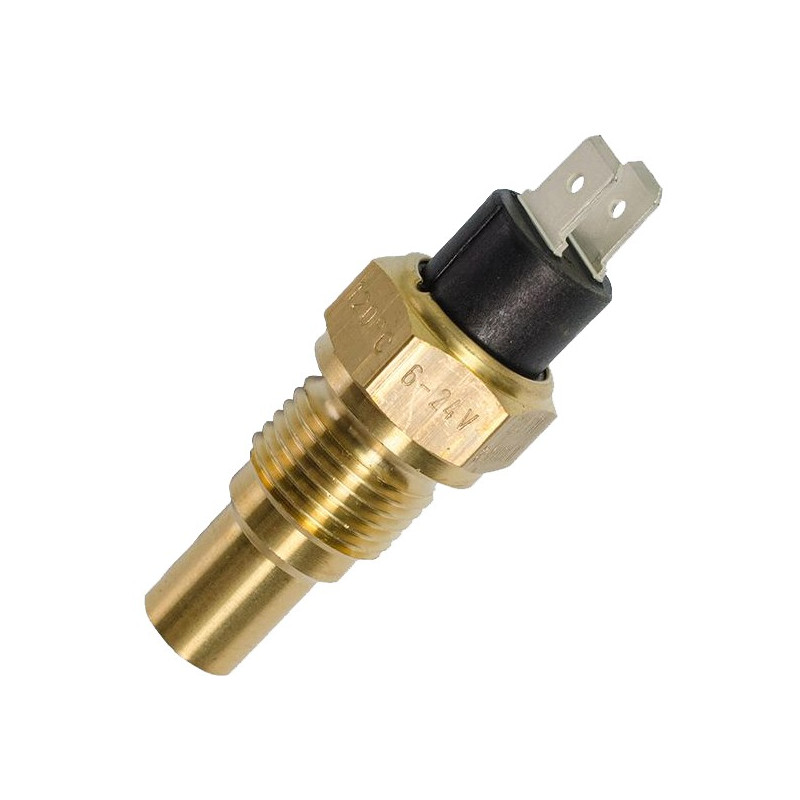

VDO Oil Temperature Sensor, +50 to 150 °C, M14×150, 323-803-002-020D - V-002020 - 323-803-002-020D - 3661768222560

VDO Oil Temperature Sensor, +50 to 150 °C, M14×150, with 110 °C Alert

Reference: V-002020

Supplier Ref.: 323-803-002-020D

Learn more

CHF 143.00 Tax included

Available to order

Unavailable in store (Promasens)

Within 30 days on average.

CHF 143.00 (tax incl.)

Earn 143 loyalty points

Oil temperature measurement with this VDO oil temperature sensor is based on a resistive signal ranging from 322.8 to 18.6 ?. This part number covers a temperature range of +50 to 150 °C and uses an M14×150 connector.

The 322.8 to 18.6 ? outlet must match the electrical specifications of the gauge or indicator being used. An identical display range alone is not sufficient to guarantee compatibility. The 110 °C ± 3 °C alarm contact provides a separate function from the measurement, designed to activate a compatible warning light.

Technical Specifications

Brand: VDO
Manufacturer Part Number: 323-803-002-020D
Type: Oil Temperature Sensor
Measurement range: +50 to 150 °C
Thread: M14×150

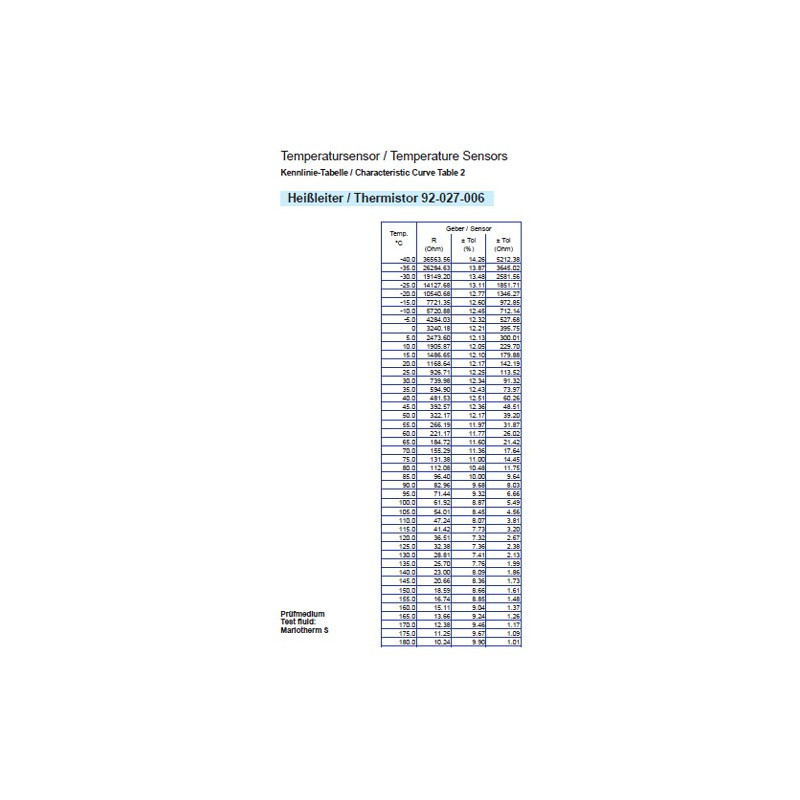

Resistive signal: 322.8 to 18.6 ?
Operating voltage: 6 to 24 V DC
Contact d’alerte: 110 °C ± 3 °C
Type of grounding: Grounded through the probe body

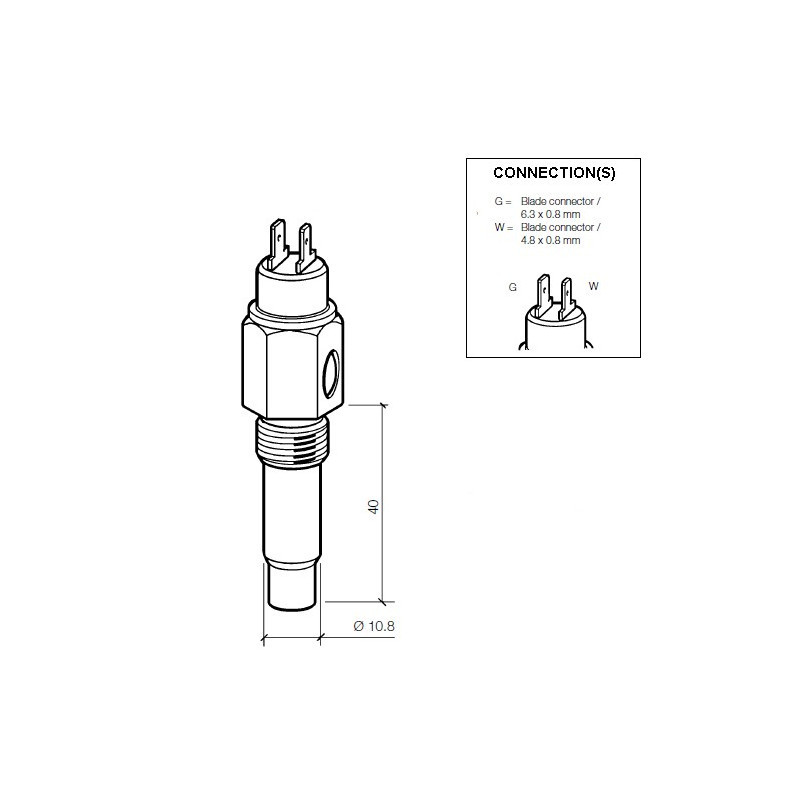

Measurement connection: 6.3 x 0.8 mm flat plug
Alarm contact connection: 6.3 x 0.8 mm flat plug

Compatibility and Mounting

Check the M14×150 thread, the resistance curve, and the connection before mounting. The probe body must maintain electrical continuity with the circuit ground.
