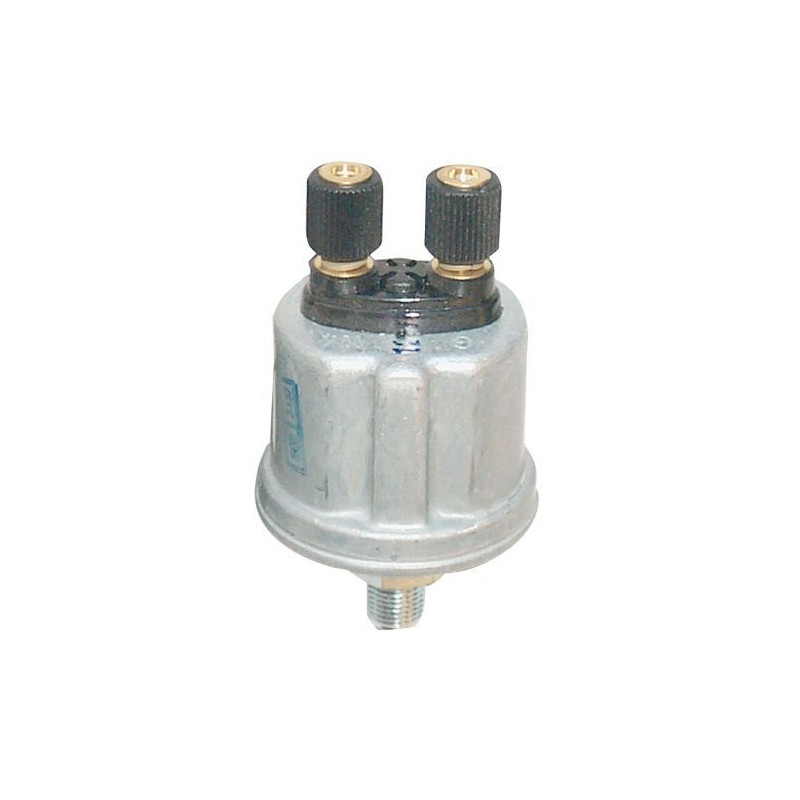

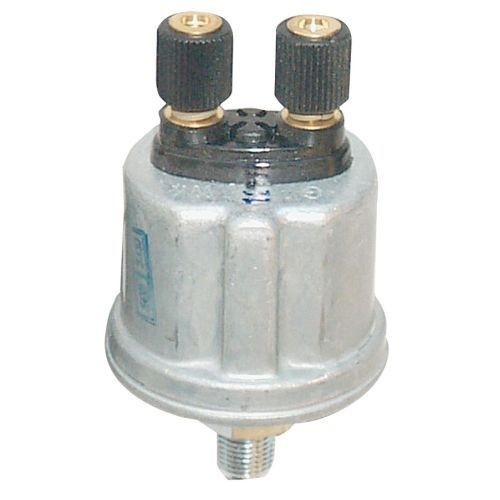

VDO Oil Pressure Sensor 0 to 5 bar 1/8-27 NPTF 360-081-030-049C - V-030049 - 360-081-030-049C - 3661768217726

VDO Oil Pressure Sensor, 0–5 bar, 1/8-27 NPTF, with 0.4 bar alert

Reference: V-030049

Supplier Ref.: 360-081-030-049C

Learn more

CHF 82.80 Tax included

CHF 92.00 -10% Discount

Promotion ends in: 04 D 17 H 33 M 32 S

In stock

Unavailable in store (Promasens)

Shipped on 2026-10-12 from our warehouse

CHF 92.00 -10%

CHF 82.80 (tax incl.)

Earn 82 loyalty points

Oil pressure measurement with this VDO oil pressure sensor is based on a resistive signal ranging from 10 to 184 ?. This part number covers 0 to 5 bar and uses a 1/8-27 NPTF fitting.

The 10 to 184 ? outlet must match the electrical characteristics of the gauge or indicator being used. An identical display range is not sufficient to guarantee compatibility. The 0.40 bar ± 0.10 bar warning contact provides a function separate from the measurement, for controlling a compatible warning light.

Technical Specifications

Brand: VDO
Manufacturer Part Number: 360-081-030-049C
Type: Oil pressure sensor
Measurement range: 0 to 5 bar
Thread: 1/8-27 NPTF

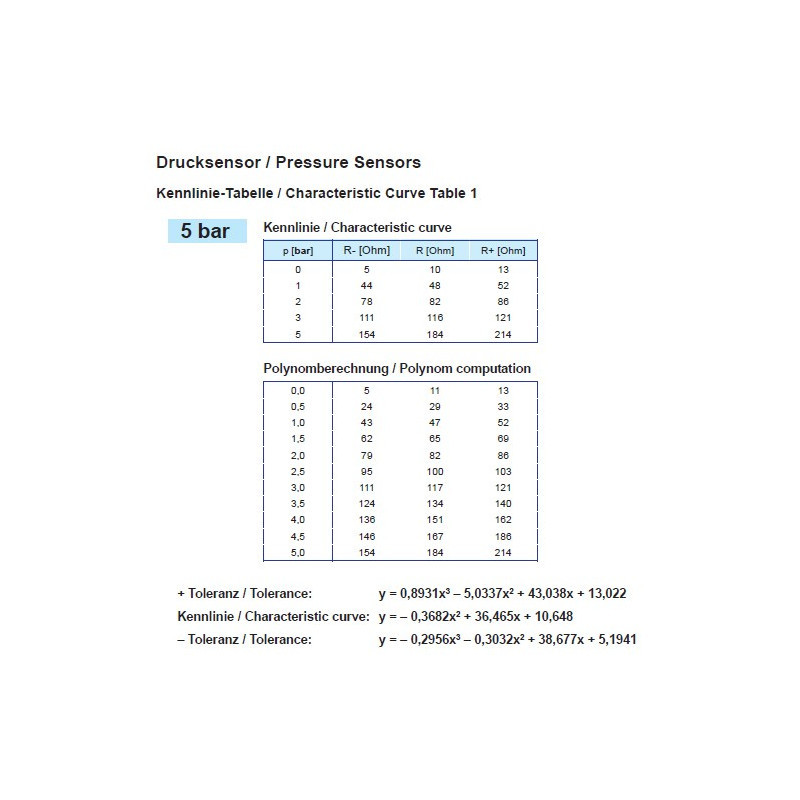

Resistive signal: 10 to 184 ?
Operating voltage: 6 to 24 V DC
Contact d’alerte : 0.40 bar ± 0.10 bar

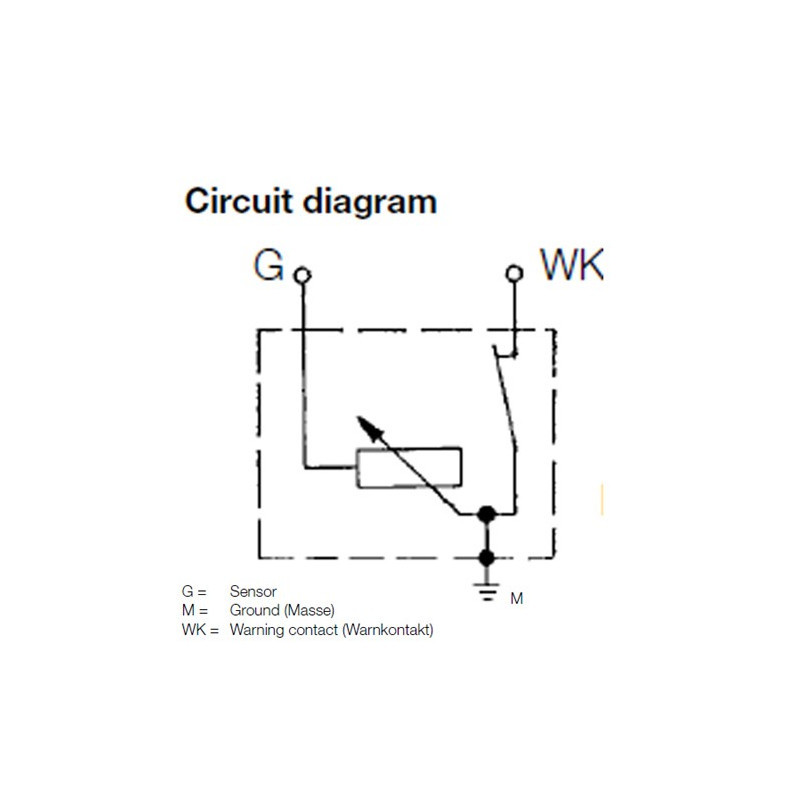

Type of grounding: Grounded through the probe body
Measurement connection: M4 plastic knurled nut
Alarm contact connection: M4 plastic knurled nut

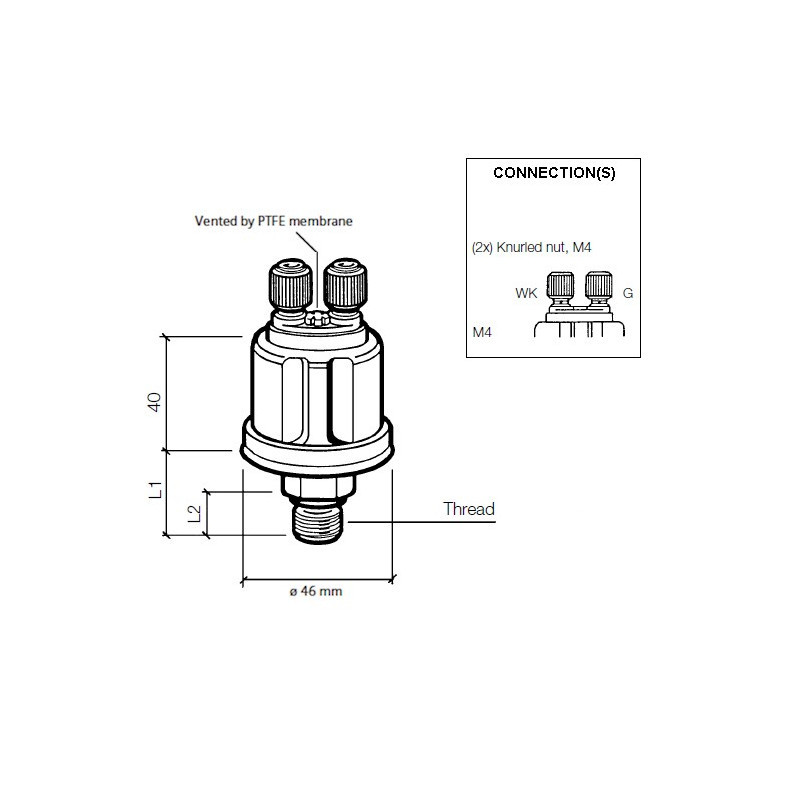

Threaded length L2: 11 mm
Thread and hex length L1: 19.5 mm
Contact operation: Closes when pressure drops

Compatibility and Mounting

Check the 1/8-27 NPTF thread, the resistance curve, and the connection before mounting. The body must maintain electrical continuity with the circuit ground.
