VDO Oil Pressure Sensor, 0–10 bar, M10x100, Short Tapered
Reference:
V-032003
Supplier Ref.:
360-081-032-003C

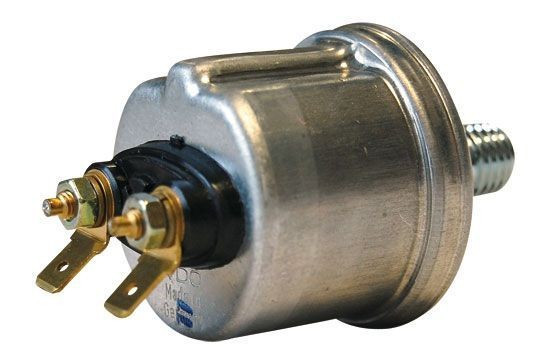

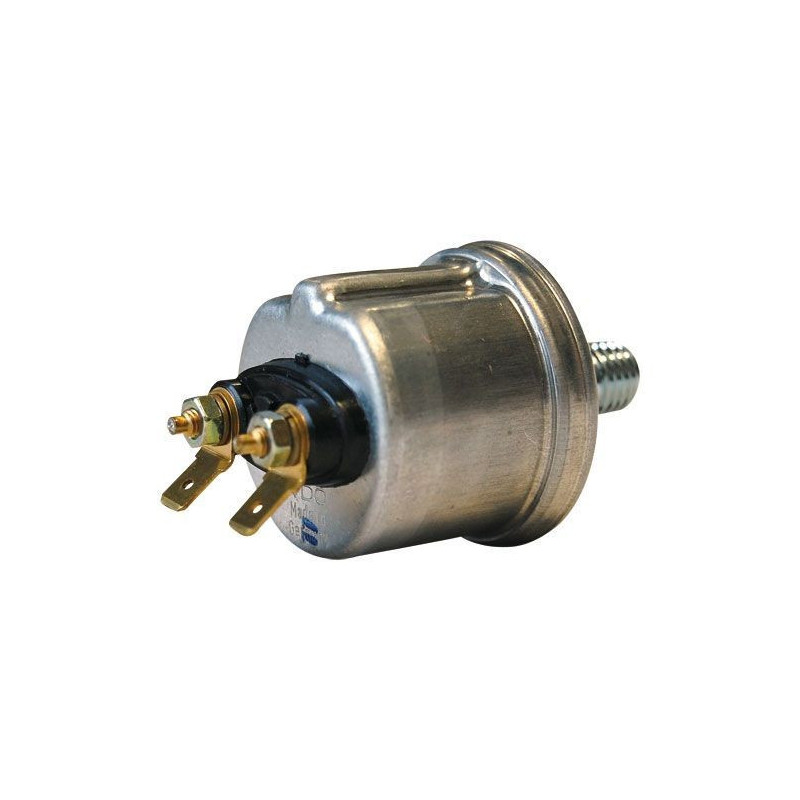

The VDO oil pressure sensor with a short tapered M10x100 connection is used to measure oil pressure. It operates in the range of 0 to 10 bar and outputs a resistive signal intended for a compatible gauge.
The 10 to 184 ? outlet must match the electrical specifications of the gauge or indicator being used. An identical display range alone is not sufficient to guarantee compatibility. This version does not include an alarm contact.
Technical Specifications
- Brand: VDO
- Manufacturer Part Number: 360-081-032-003C
- Type: Oil pressure sensor
- Measurement range: 0 to 10 bar
- Thread: M10x100, short tapered
- Resistive signal: 10 to 184 ?
- Operating voltage: 6 to 24 V DC
- Alarm contact: None

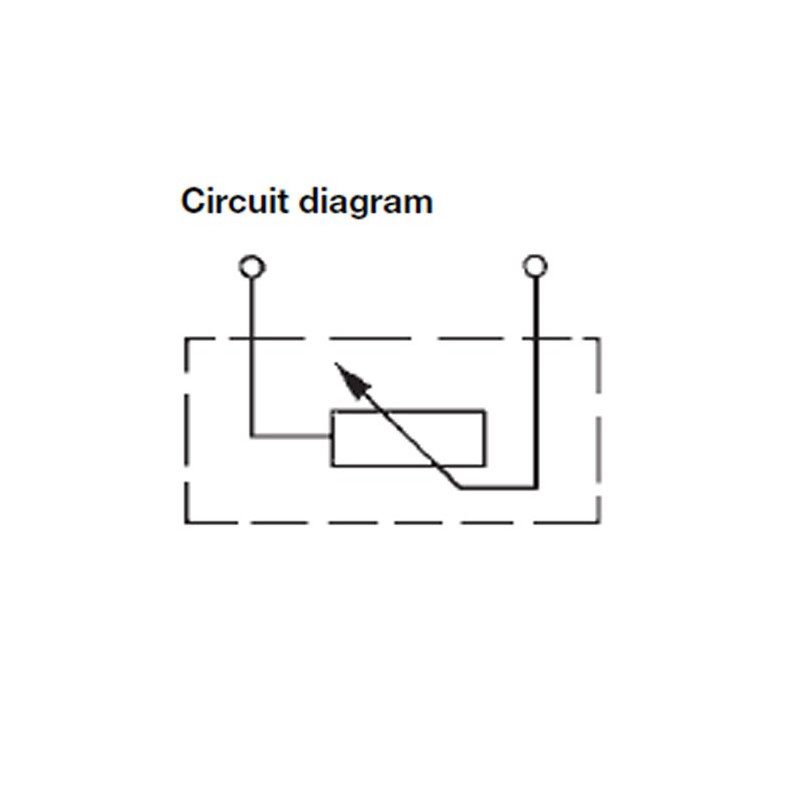

- Type of ground: Signal return isolated from ground

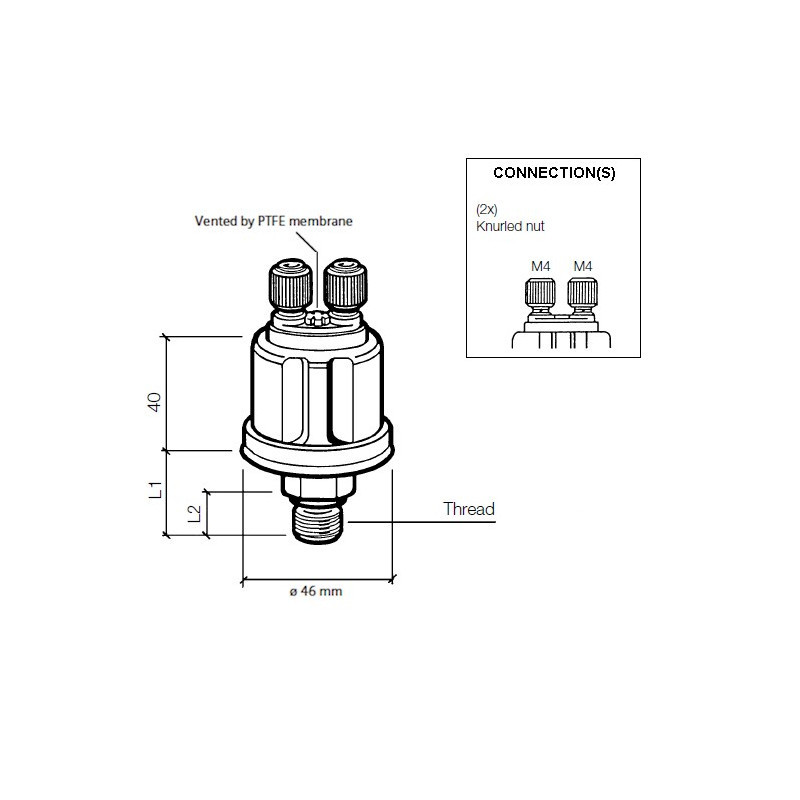

- Measurement connection: M4 plastic knurled nut
- Threaded length L2: 11 mm
- Thread and hex length L1: 19.5 mm
Compatibility and Mounting
Check the short tapered M10x100 thread, the resistance curve, and the connection before mounting. Make the connection according to the probe and instrument manuals.
-
Sensor typeTurbo Pressure
