VDO Oil Pressure Sensor, 0–10 bar, M14×150, with 1-bar alert

The VDO 0–10 bar oil pressure sensor transmits oil pressure data to a compatible instrument. Its M14×150 connection determines how it is mounted mechanically on the circuit.

The 10 to 184 ? outlet must match the electrical specifications of the gauge or indicator being used. An identical display range alone is not sufficient to guarantee compatibility. The 1.00 bar ± 0.15 bar alarm contact provides a function separate from the measurement, designed to activate a compatible warning light.

Technical Specifications

• Brand: VDO
• Manufacturer Part Number: 360-081-030-063C
• Type: Oil pressure sensor
• Measurement range: 0 to 10 bar
• Thread: M14×150

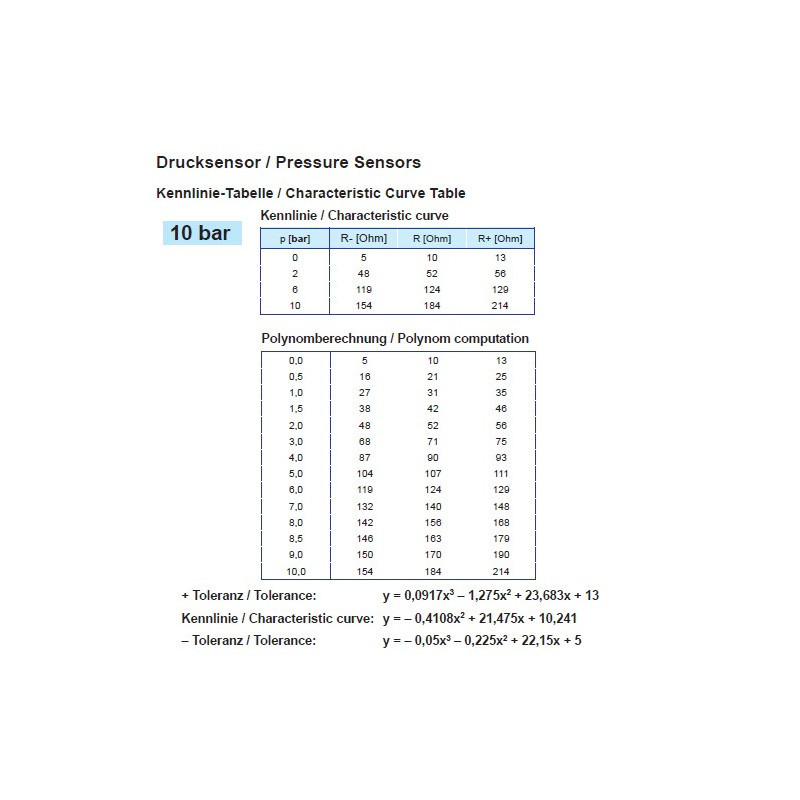

• Resistive signal: 10 to 184 ?
• Operating voltage: 6 to 24 V DC
• Contact d’alerte : 1.00 bar ± 0.15 bar
• Type of grounding: Grounded through the probe body

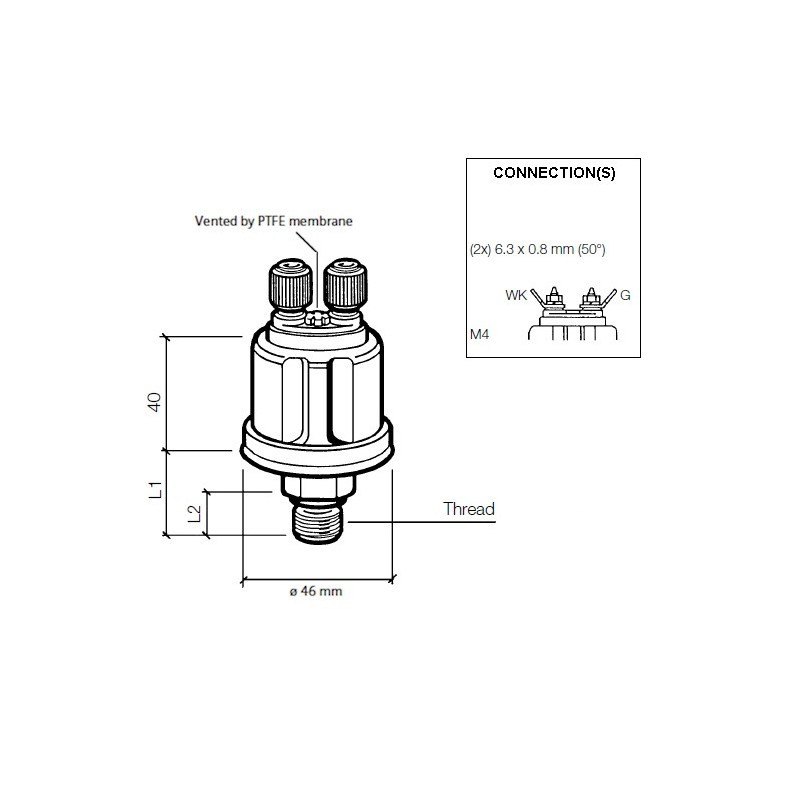

• Measurement connection: M4, 6.3 x 0.8 mm flat plug

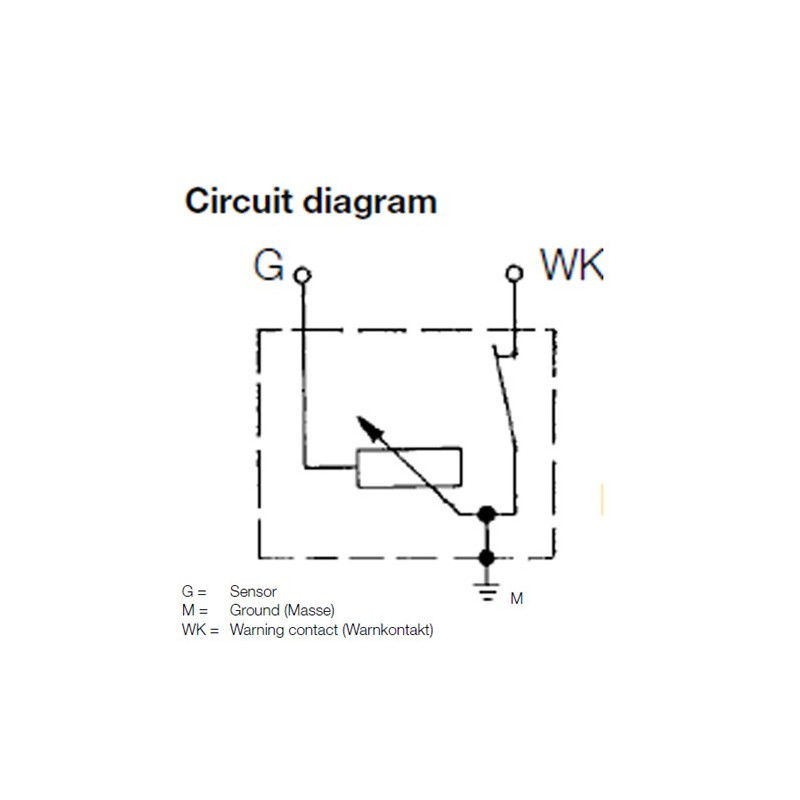

• Alarm contact connection: M4 flat plug, 6.3 x 0.8 mm
• Threaded length L2: 12 mm
• Thread length and hexagonal length L1: 20.5 mm
• Contact operation: Closes when pressure drops

Compatibility and Mounting

Check the M14×150 thread, the resistance curve, and the connection before mounting. The body must maintain electrical continuity with the circuit ground.
