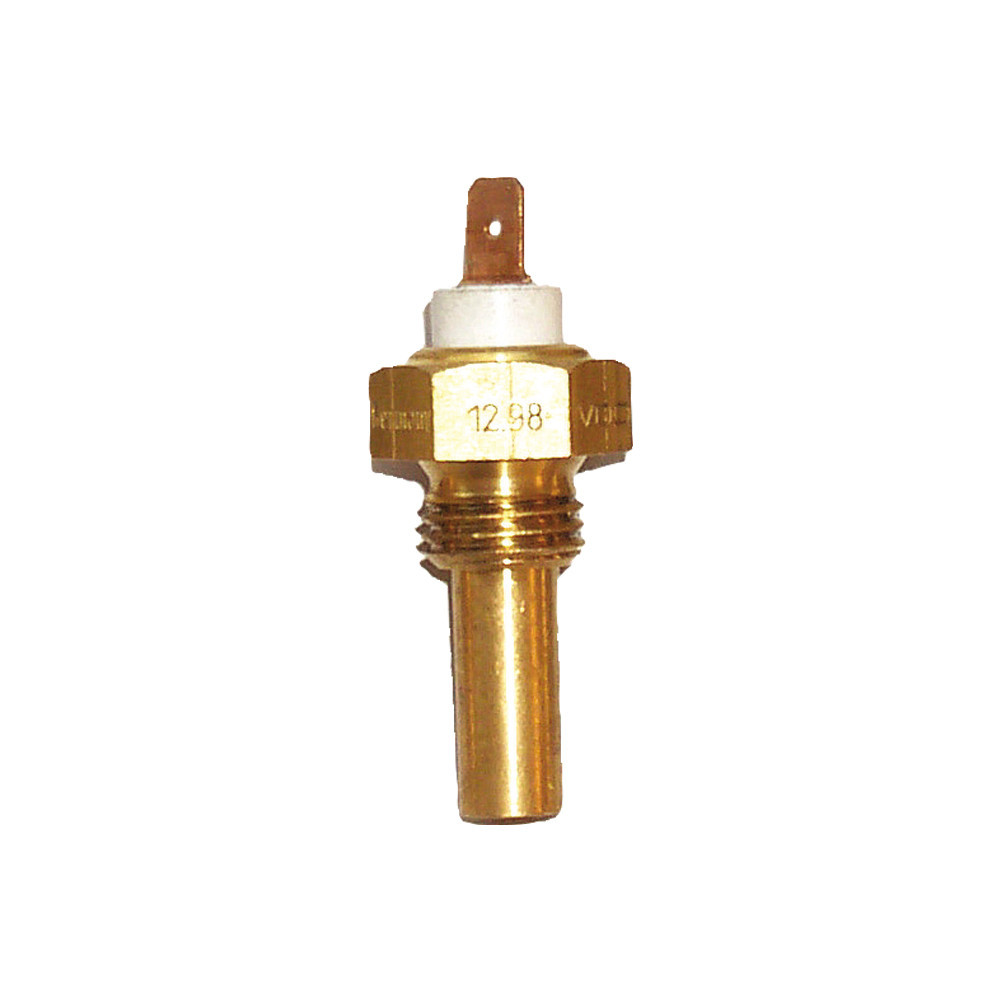

VDO Water Temperature Sensor, +40 to 120 °C, 1/4-18 NPTF, 323-801-001-009N - V-001009 - 323-801-001-009N - 3661768217214

VDO Cooling Fluid Temperature Sensor, +40 to 120 °C, 1/4-18 NPTF

Reference: V-001009

Supplier Ref.: 323-801-001-009N

Learn more

CHF 32.85 Tax included

CHF 36.50 -10% Discount

Promotion ends in: 04 D 20 H 41 M 25 S

Available to order

Unavailable in store (Promasens)

Within 30 days on average.

CHF 36.50 -10%

CHF 32.85 (tax incl.)

Earn 32 loyalty points

Cooling fluid temperature measurement with this VDO cooling fluid temperature sensor is based on a resistive signal ranging from 287.4 to 22.7 ?. This model covers a temperature range of +40 to 120 °C and uses a 1/4-18 NPTF connection.

The 287.4 to 22.7 ? outlet must match the electrical characteristics of the gauge or indicator being used. An identical display range is not sufficient to guarantee compatibility. This version does not include an alarm contact.

Technical Specifications

Brand: VDO
Manufacturer Part Number: 323-801-001-009N
Type: Cooling fluid temperature sensor
Measurement range: +40 to 120 °C
Thread: 1/4-18 NPTF
Resistive signal: 287.4 to 22.7 ?
Operating voltage: 6 to 24 V DC
Alarm contact: None
Type of mass: Mass via probe body

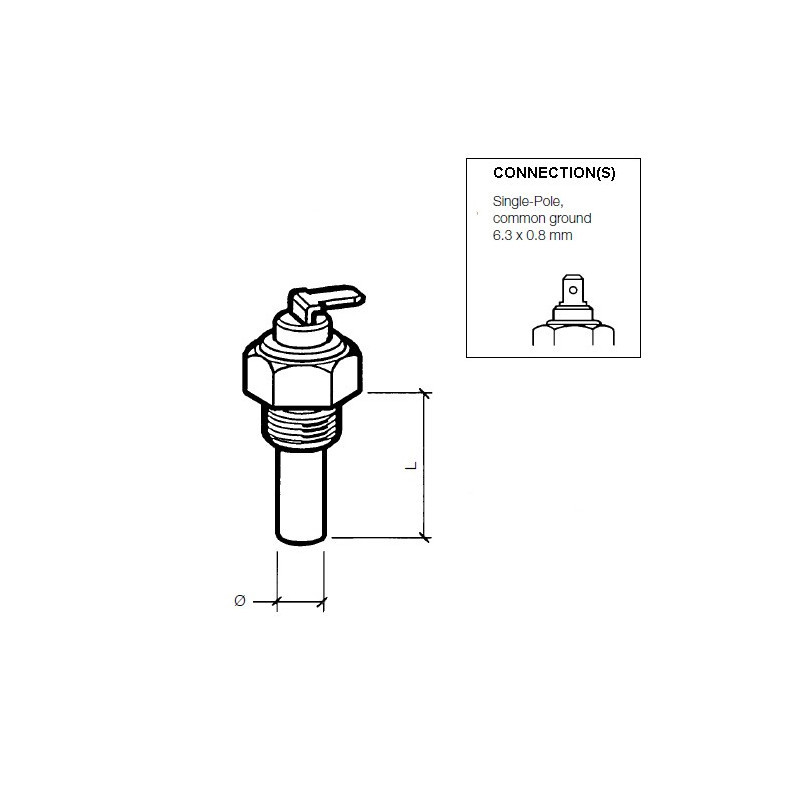

Measurement connection: 6.3 x 0.8 mm flat plug

Compatibility and Mounting

Check the 1/4-18 NPTF thread, the resistance curve, and the connection before mounting. The probe body must maintain electrical continuity with the circuit ground.
