VDO Water Temperature Sensor, +40 to 120 °C, M16×150, 323-801-001-040N - V-001040 - 323-801-001-040N - 3661768217238

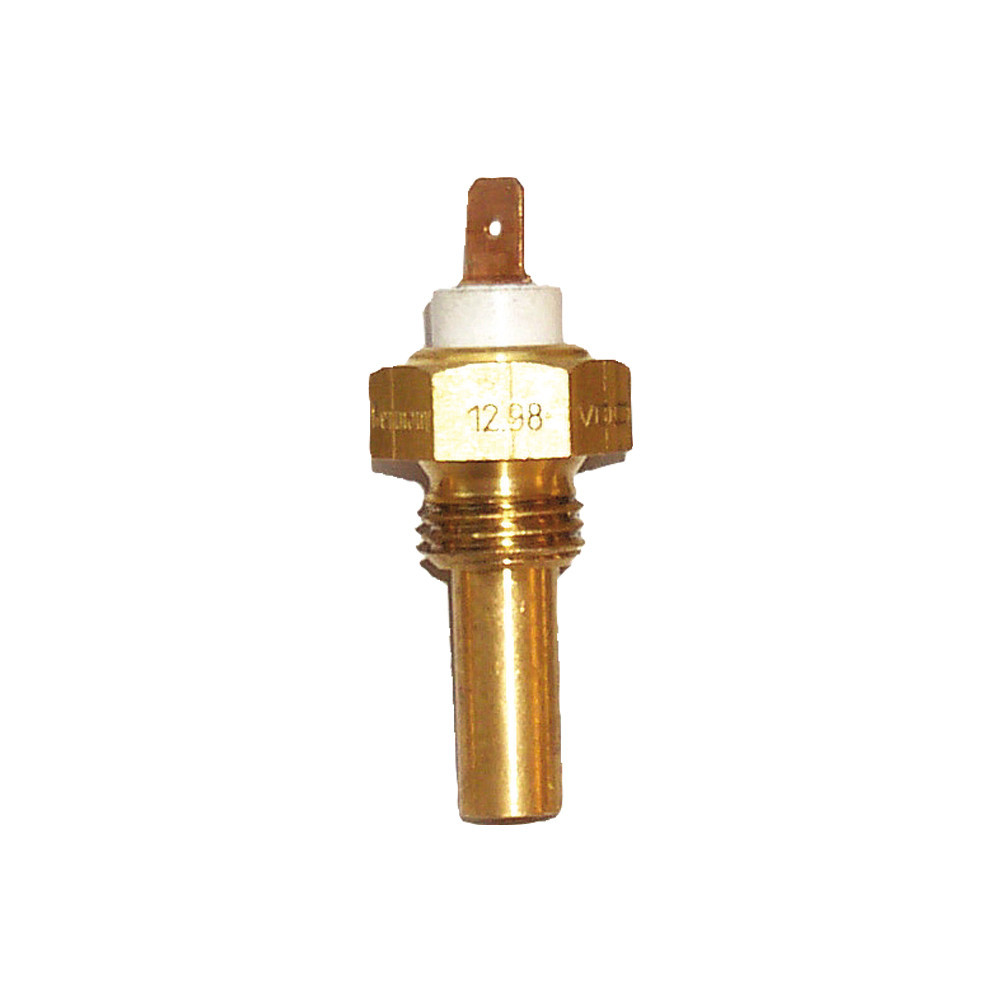

VDO Cooling Fluid Temperature Sensor, +40 to 120 °C, M16×150

Reference: V-001040

Supplier Ref.: 323-801-001-040N

Learn more

CHF 54.80 Tax included

In stock

Unavailable in store (Promasens)

Shipped tomorrow from our warehouse

CHF 54.80 (tax incl.)

Earn 54 loyalty points

The VDO cooling fluid temperature sensor (+40 to 120 °C ) transmits cooling fluid temperature data to a compatible instrument. Its M16×150 connection determines the mechanical mounting on the circuit.

The outlet range of 287.4 to 22.7 ? must match the electrical specifications of the gauge or indicator being used. An identical display range alone is not sufficient to guarantee compatibility. This version does not include an alarm contact.

Technical Specifications

Brand: VDO
Manufacturer Part Number: 323-801-001-040N
Type: Cooling fluid temperature sensor
Measurement range: +40 to 120 °C
Thread: M16×150

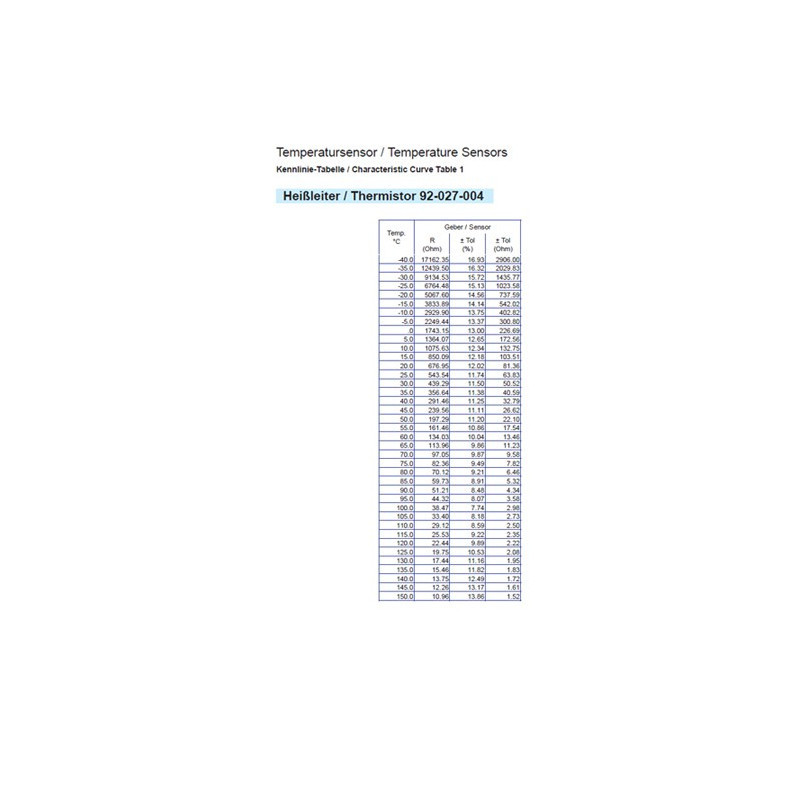

Resistive signal: 287.4 to 22.7 ?
Operating voltage: 6 to 24 V DC
Alarm contact: None
Type of mass: Mass via the probe body

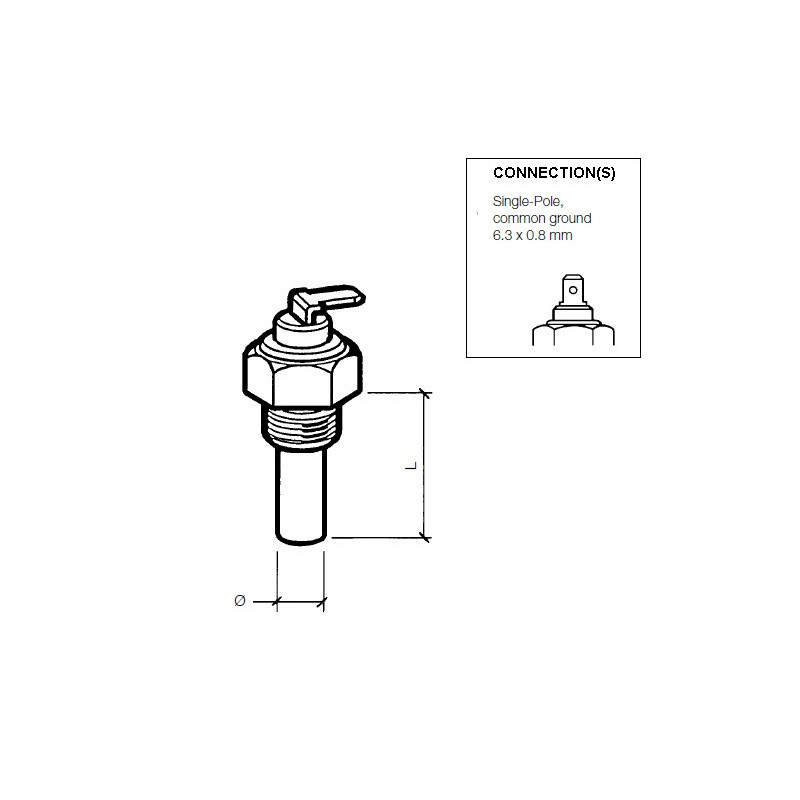

Measurement connection: 6.3 x 0.8 mm flat plug

Compatibility and Mounting

Check the M16×150 thread, the resistance curve, and the connection before mounting. The probe body must maintain electrical continuity with the circuit ground.
