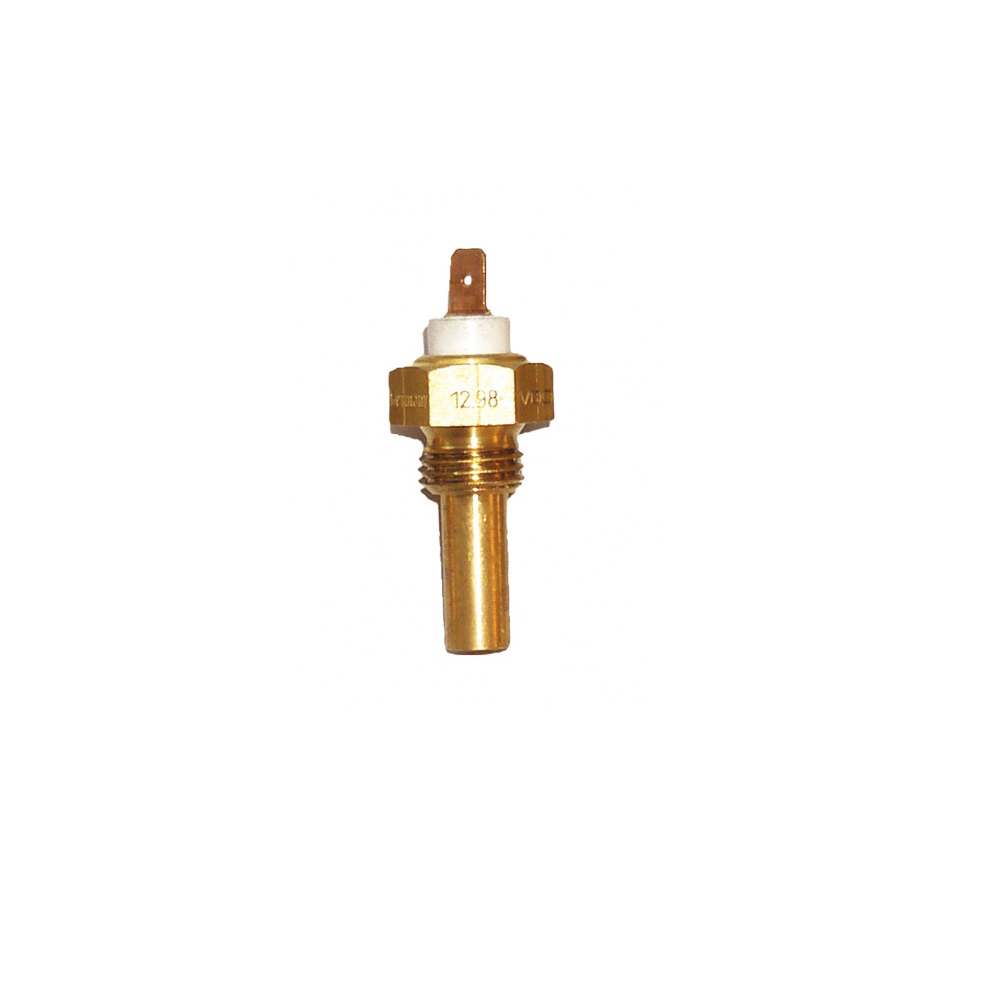

VDO Oil Temperature Sensor, +50 to 150 °C, 1/8-27 NPTF
Reference:
V-009001
Supplier Ref.:
A2C5218492280
The VDO oil temperature sensor with a 1/8-27 NPTF connection is used to measure oil temperature. It operates in the range of +50 to 150 °C and outputs a resistive signal intended for a compatible temperature indicator.
The outlet range of 322.8 to 18.6 ? must match the electrical specifications of the gauge or indicator being used. An identical display range alone is not sufficient to guarantee compatibility. This version does not include an alarm contact.
Technical Specifications
- Brand: VDO
- Manufacturer Part Number: A2C5218492280
- Type: Oil temperature sensor
- Measurement range: +50 to 150 °C
- Thread: 1/8-27 NPTF

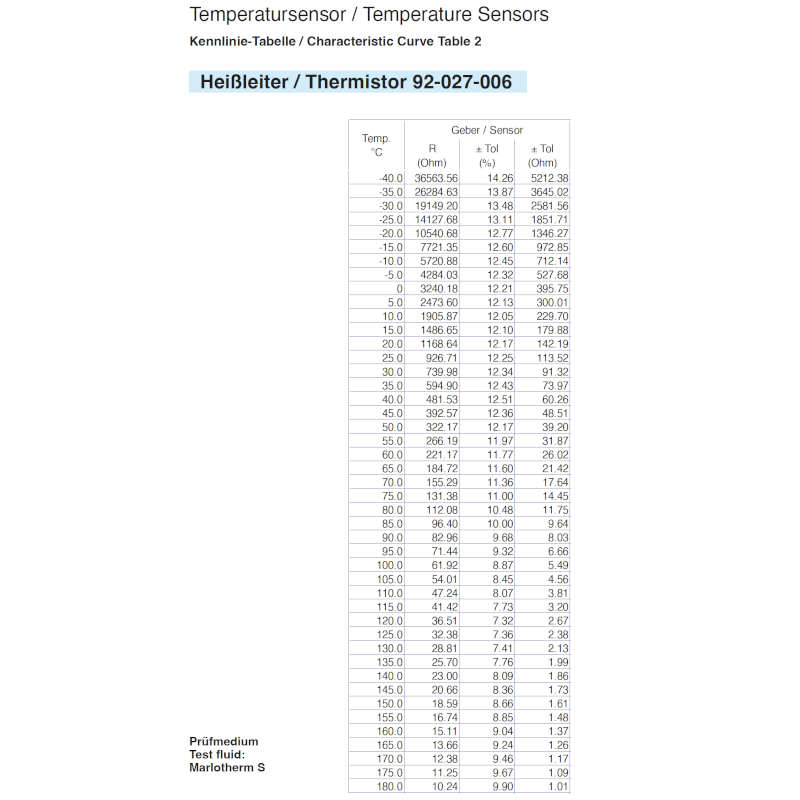

- Resistive signal: 322.8 to 18.6 ?
- Operating voltage: 6 to 24 V DC
- Alarm contact: None
- Type of mass: Mass via probe body

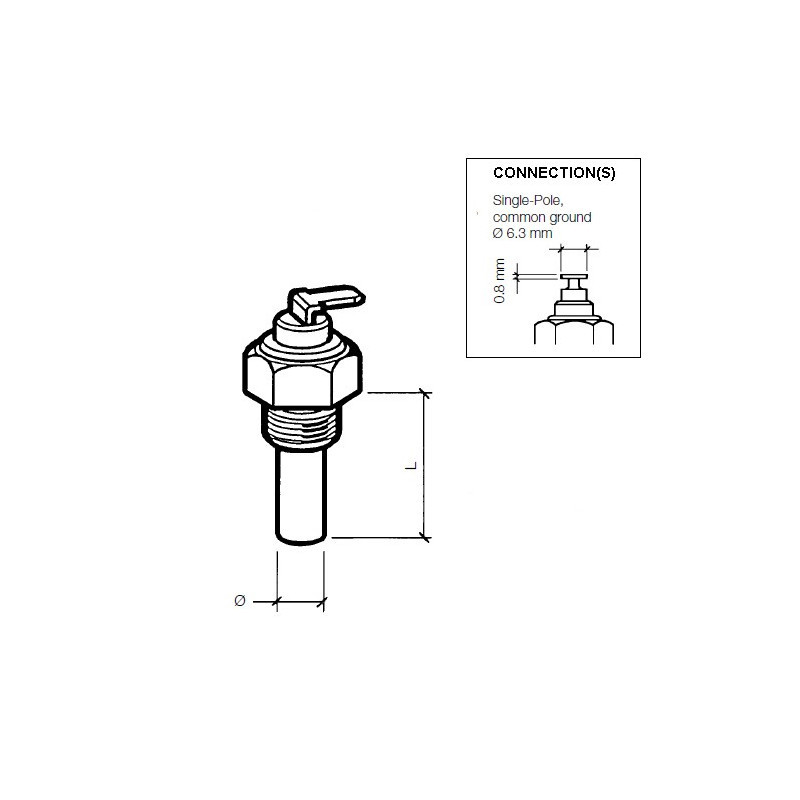

- Measurement connection: T-type flat plug, 6.3 x 0.8 mm
Compatibility and Mounting
Check the 1/8-27 NPTF thread, the resistance curve, and the connection before mounting. The probe body must maintain electrical continuity with the circuit ground.
-
Sensor typeOil Temperature
