VDO Oil Temperature Sensor, +50 to 150 °C, M14×150, A2C1755480001 - V-002007 - A2C1755480001 - 3661768217405

VDO Oil Temperature Sensor, +50 to 150 °C, M14×150, with 130 °C Alert

Reference: V-002007

Supplier Ref.: A2C1755480001

Learn more

CHF 61.47 Tax included

CHF 68.30 -10% Discount

Promotion ends in: 04 D 23 H 48 M 49 S

Available to order

Unavailable in store (Promasens)

Within 30 days on average.

CHF 68.30 -10%

CHF 61.47 (tax incl.)

Earn 61 loyalty points

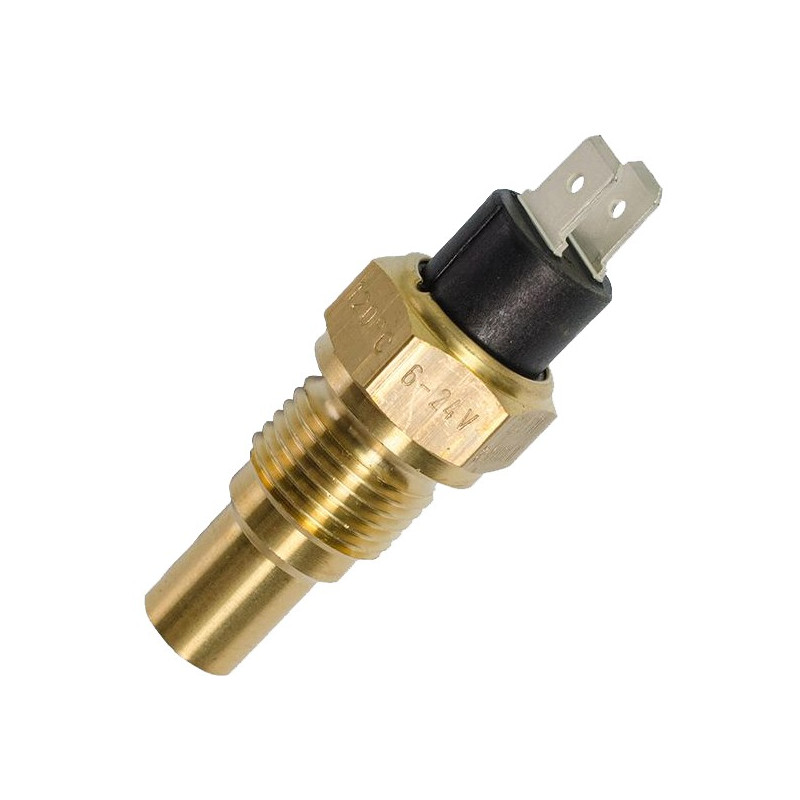

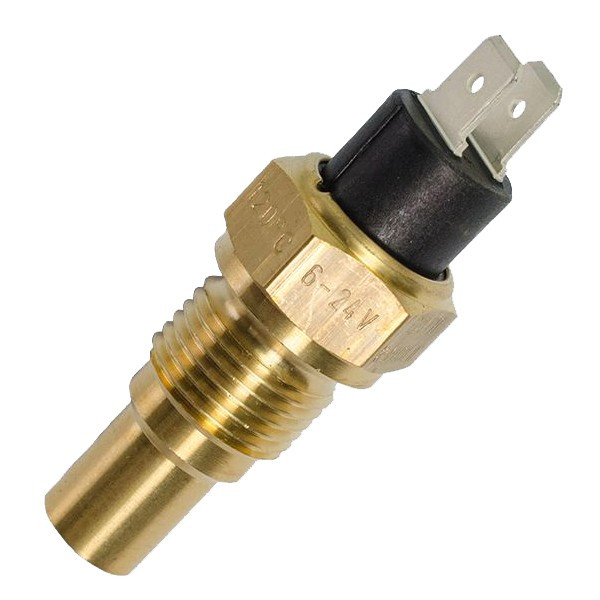

The VDO oil temperature sensor with an M14×150 connection is used to measure oil temperature. It operates within the range of +50 to 150 °C and outputs a resistive signal intended for a compatible gauge.

The outlet range of 322.8 to 18.6 ? must match the electrical specifications of the gauge or indicator being used. An identical display range alone is not sufficient to guarantee compatibility. The 130 °C ± 3 °C alarm contact provides a separate function from the measurement, designed to activate a compatible warning light.

Technical Specifications

Brand: VDO
Manufacturer Part Number: A2C1755480001
Type: Oil Temperature Sensor
Measurement range: +50 to 150 °C
Thread: M14×150

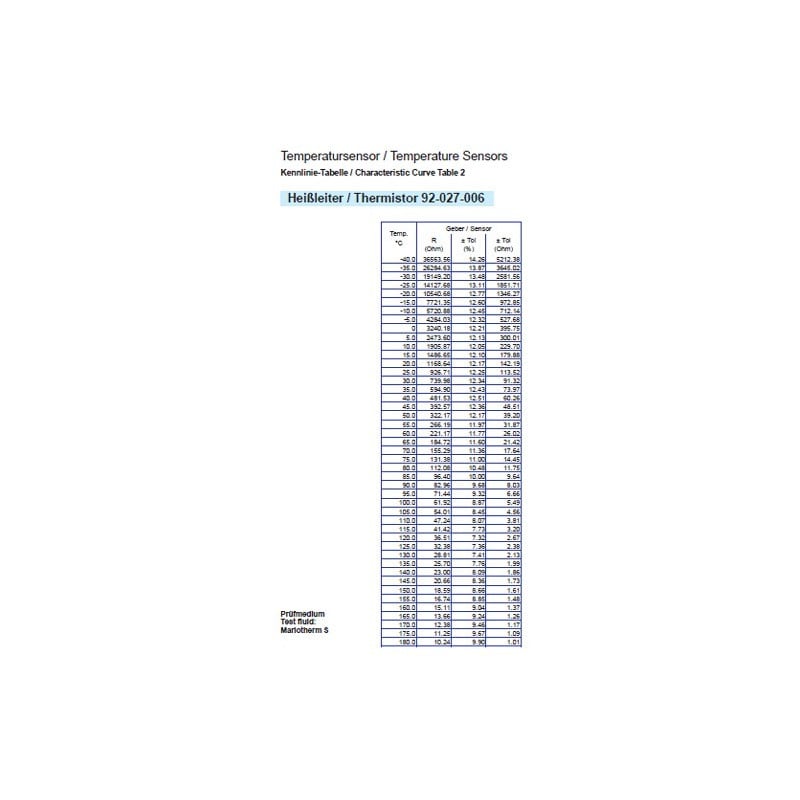

Resistive signal: 322.8 to 18.6 ?
Operating voltage: 6 to 24 V DC
Contact d’alerte: 130 °C ± 3 °C
Type of grounding: Grounded through the probe body

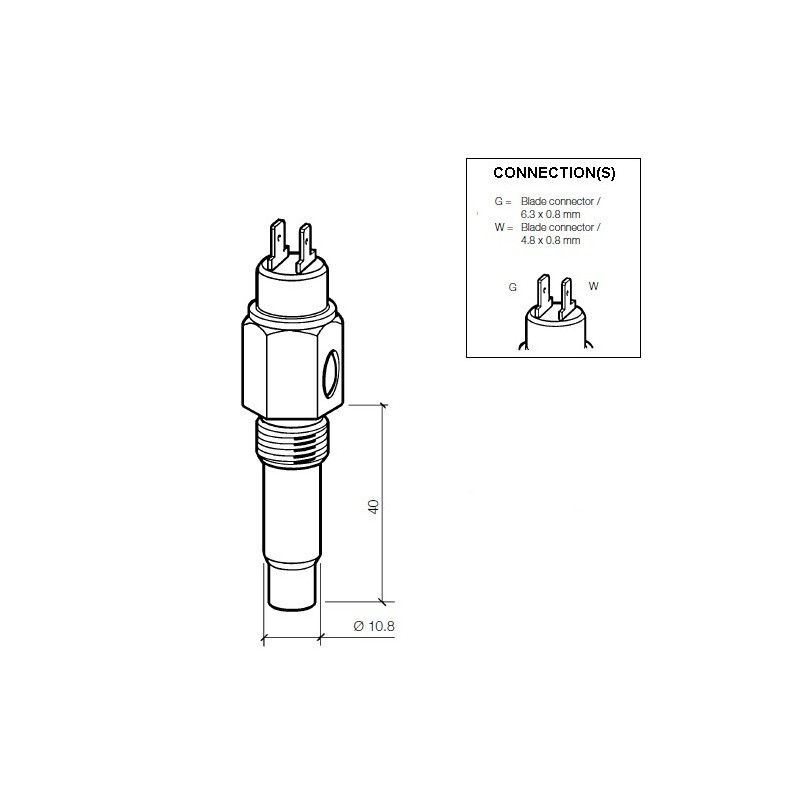

Measurement connection: 6.3 x 0.8 mm flat plug
Alarm contact connection: 6.3 x 0.8 mm flat plug

Compatibility and Mounting

Check the M14×150 thread, the resistance curve, and the connection before mounting. The probe body must maintain electrical continuity with the circuit ground.
