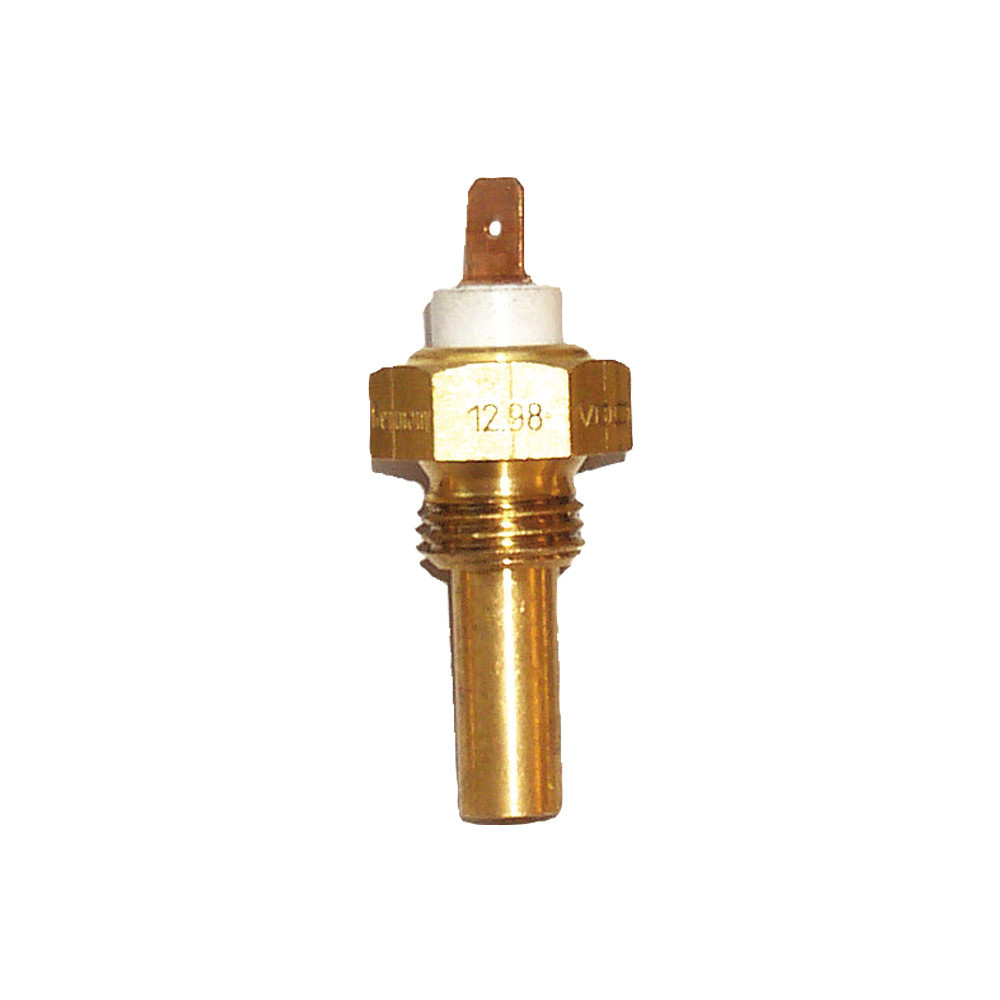

VDO Cooling Fluid Temperature Sensor, +40 to 120 °C, M14×150
Reference:
V-001006
Supplier Ref.:
A2C5218485780

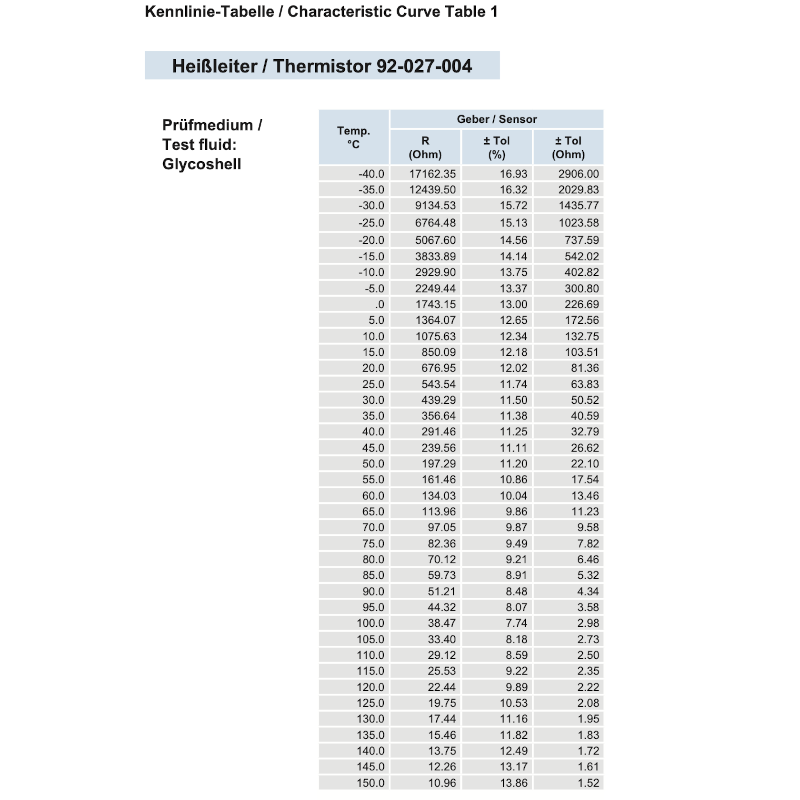

Cooling fluid temperature measurement with this VDO cooling fluid temperature sensor is based on a resistive signal ranging from 287.4 to 22.7 ?. This model covers a temperature range of +40 to 120 °C and uses an M14×150 connector.
The 287.4 to 22.7 ? outlet must match the electrical characteristics of the gauge or indicator being used. An identical display range is not sufficient to guarantee compatibility. This version does not include an alarm contact.
Technical Specifications
- Brand: VDO
- Manufacturer Part Number: A2C5218485780
- Type: Cooling fluid temperature sensor
- Measurement range: +40 to 120 °C
- Thread: M14×150
- Resistive signal: 287.4 to 22.7 ?
- Operating voltage: 6 to 24 V DC
- Alarm contact: None
- Type of grounding: Grounded through the probe body

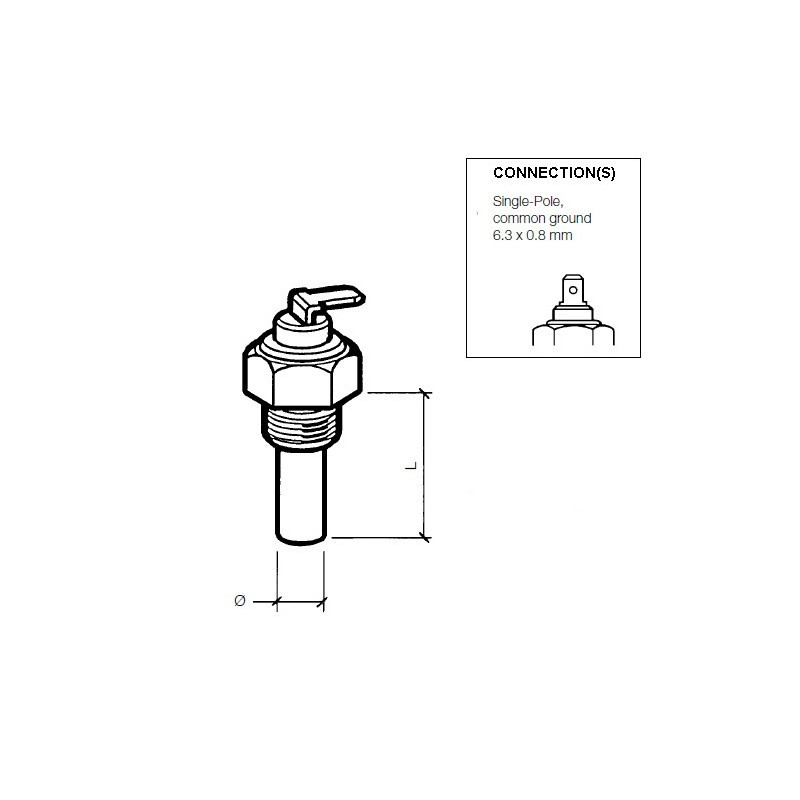

- Measurement connection: 6.3 x 0.8 mm flat plug
Compatibility and Mounting
Check the M14×150 thread, the resistance curve, and the connection before mounting. The probe body must maintain electrical continuity with the circuit ground.
-
Sensor typeWater Temperature
