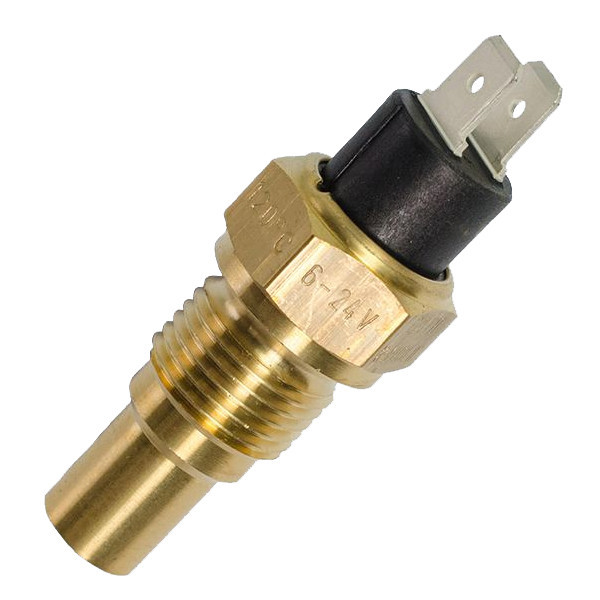

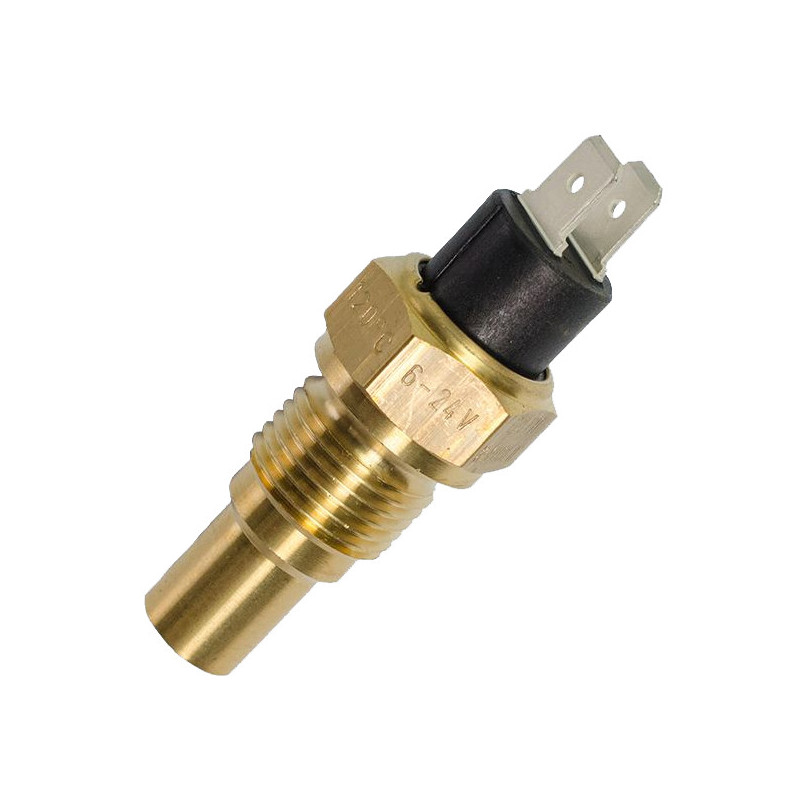

VDO Water Temperature Sensor, +40 to 120 °C, M14×150, 323-803-001-008D - V-001008 - 323-803-001-008D - 3661768217344

VDO Cooling Fluid Temperature Sensor, +40 to 120 °C, M14×150, with 110 °C Alert

Reference: V-001008

Supplier Ref.: 323-803-001-008D

Learn more

CHF 40.80 Tax included

Available to order

Unavailable in store (Promasens)

Within 30 days on average.

CHF 40.80 (tax incl.)

Earn 40 loyalty points

The VDO cooling fluid temperature sensor (+40 to 120 °C ) transmits cooling fluid temperature data to a compatible instrument. Its M14×150 connection determines the mechanical mounting on the circuit.

The outlet range of 287.4 to 22.7 ? must match the electrical specifications of the gauge or indicator being used. An identical display range alone is not sufficient to guarantee compatibility. The 110 °C ± 3 °C alarm contact provides a function separate from the measurement, designed to activate a compatible warning light.

Technical Specifications

Brand: VDO
Manufacturer Part Number: 323-803-001-008D
Type: Cooling fluid temperature sensor
Measurement range: +40 to 120 °C
Thread: M14×150
Resistive signal: 287.4 to 22.7 ?
Operating voltage: 6 to 24 V DC
Contact d’alerte: 110 °C ± 3 °C
Type of grounding: Grounded through the probe body

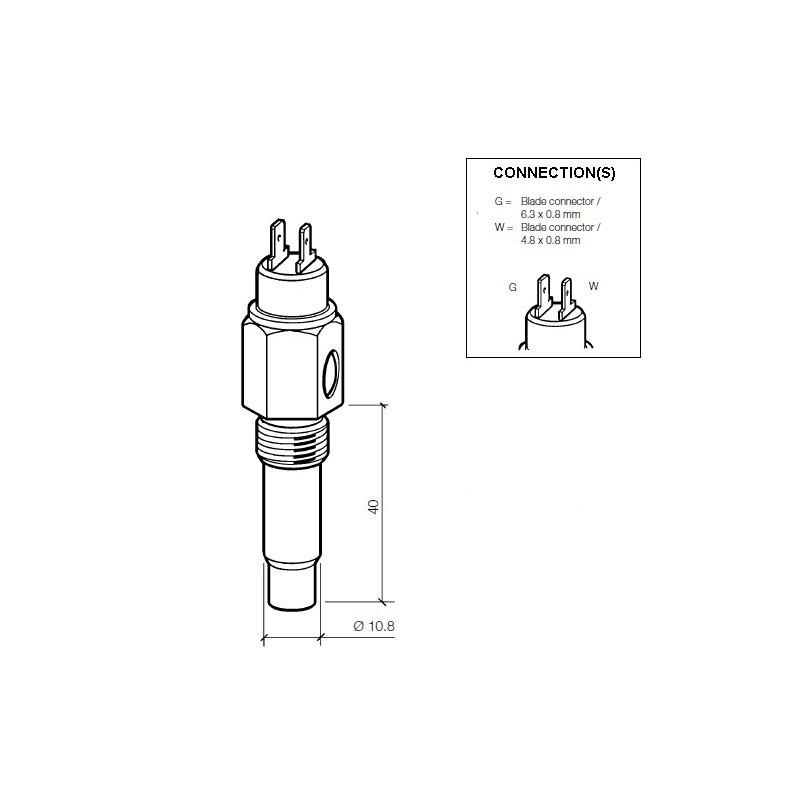

Measurement connection: 6.3 x 0.8 mm flat plug
Alarm contact connection: 6.3 x 0.8 mm flat plug

Compatibility and Mounting

Check the M14×150 thread, the resistance curve, and the connection before mounting. The probe body must maintain electrical continuity with the circuit ground.
