VDO Oil Pressure Sensor, 0 to 10 bar, M16×150, 360-081-030-107C - V-030107 - 360-081-030-107C - 3661768263907

VDO Oil Pressure Sensor, 0–10 bar, M16×150, with 5.50 bar alert

Reference: V-030107

Supplier Ref.: 360-081-030-107C

Learn more

CHF 81.90 Tax included

CHF 91.00 -10% Discount

Promotion ends in: 04 D 23 H 15 M 29 S

Available to order

Unavailable in store (Promasens)

Within 30 days on average.

CHF 91.00 -10%

CHF 81.90 (tax incl.)

Earn 81 loyalty points

The VDO 0–10 bar oil pressure sensor transmits oil pressure data to a compatible instrument. Its M16×150 connection determines how it is mechanically mounted on the circuit.

The 10 to 184 ? outlet must match the electrical specifications of the gauge or indicator being used. An identical display range is not sufficient to guarantee compatibility. The 5.50 bar ± 0.30 bar alarm contact provides a function separate from the measurement, to activate a compatible warning light.

Technical Specifications

Brand: VDO
Manufacturer Part Number: 360-081-030-107C
Type: Oil pressure sensor
Measurement range: 0 to 10 bar
Thread: M16×150

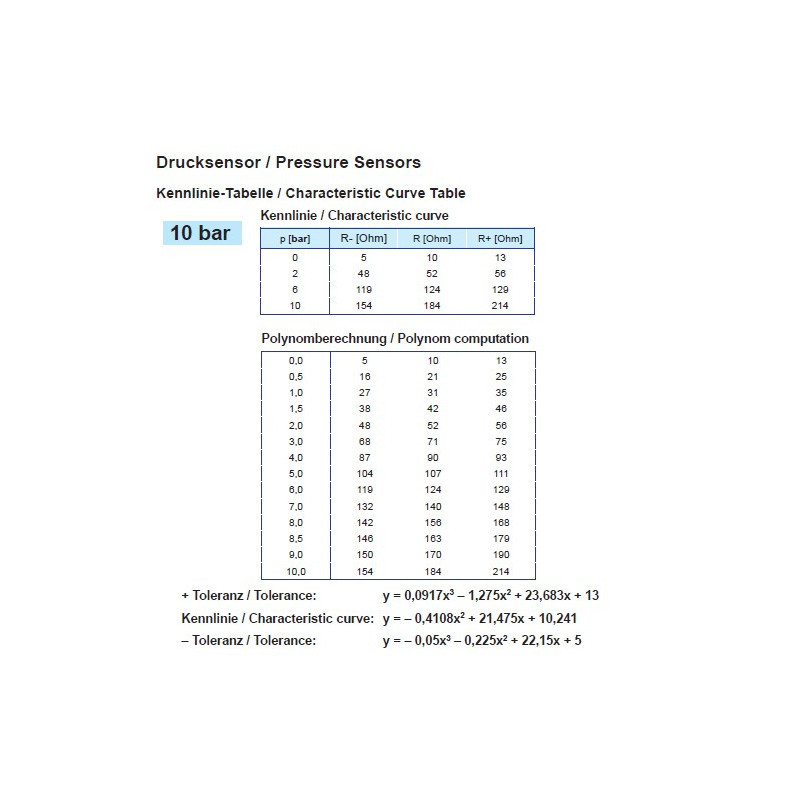

Resistive signal: 10 to 184 ?
Operating voltage: 6 to 24 V DC
Contact d’alerte : 5.50 bar ± 0.30 bar

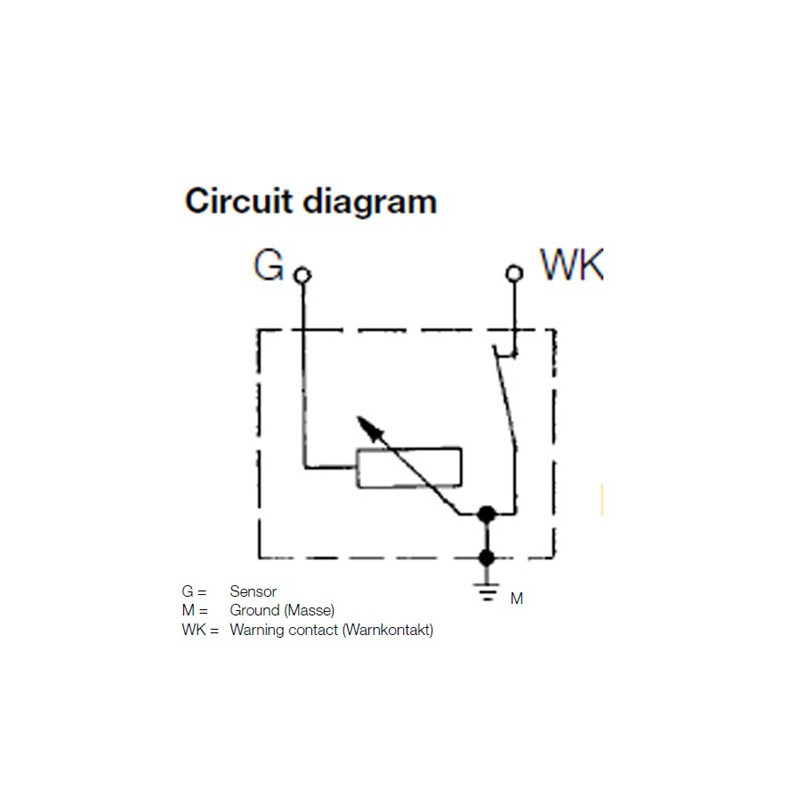

Type of grounding: Grounded through the sensor body
Measurement connection: M4, 4.8 x 0.8 mm flat plug
Alarm contact connection: 6.3 x 0.8 mm flat plug

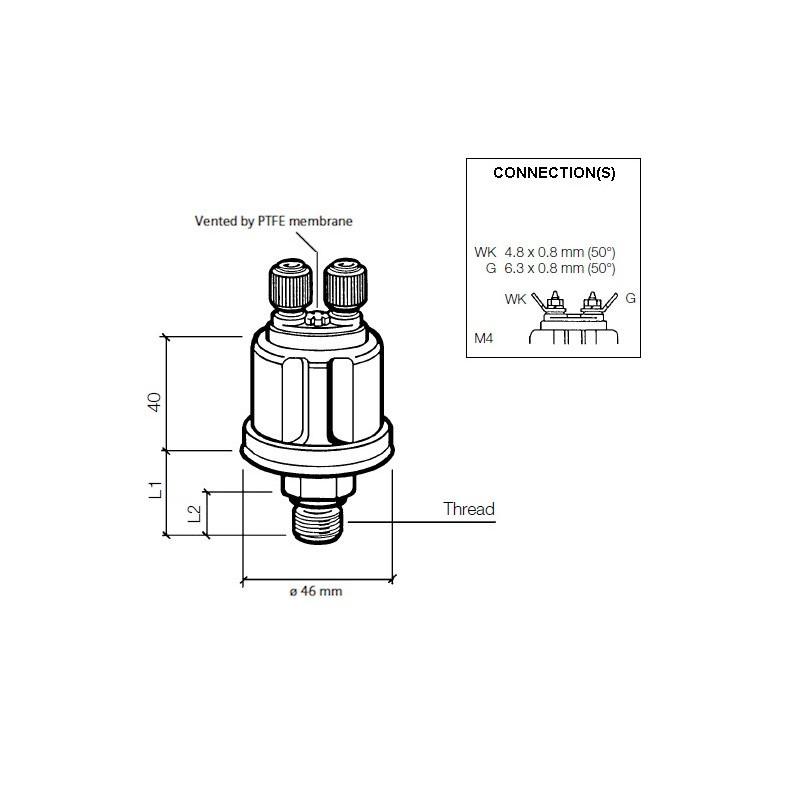

Threaded length L2: 12 mm
Thread and hexagonal length L1: 20.5 mm
Contact operation: Closes when pressure drops

Compatibility and Mounting

Check the M16×150 thread, the resistance curve, and the connection before mounting. The body must maintain electrical continuity with the circuit ground.
