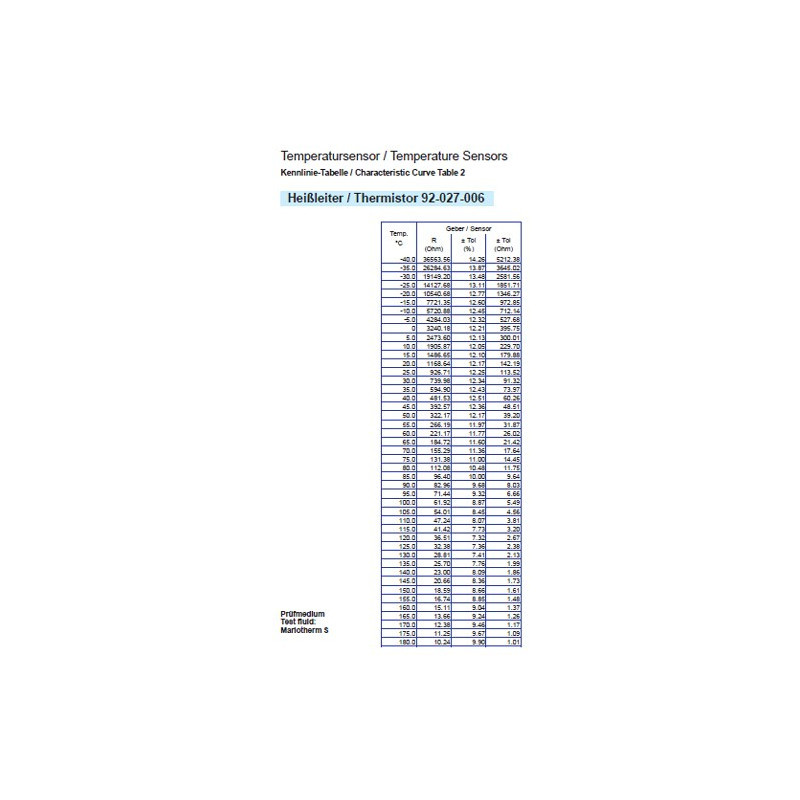

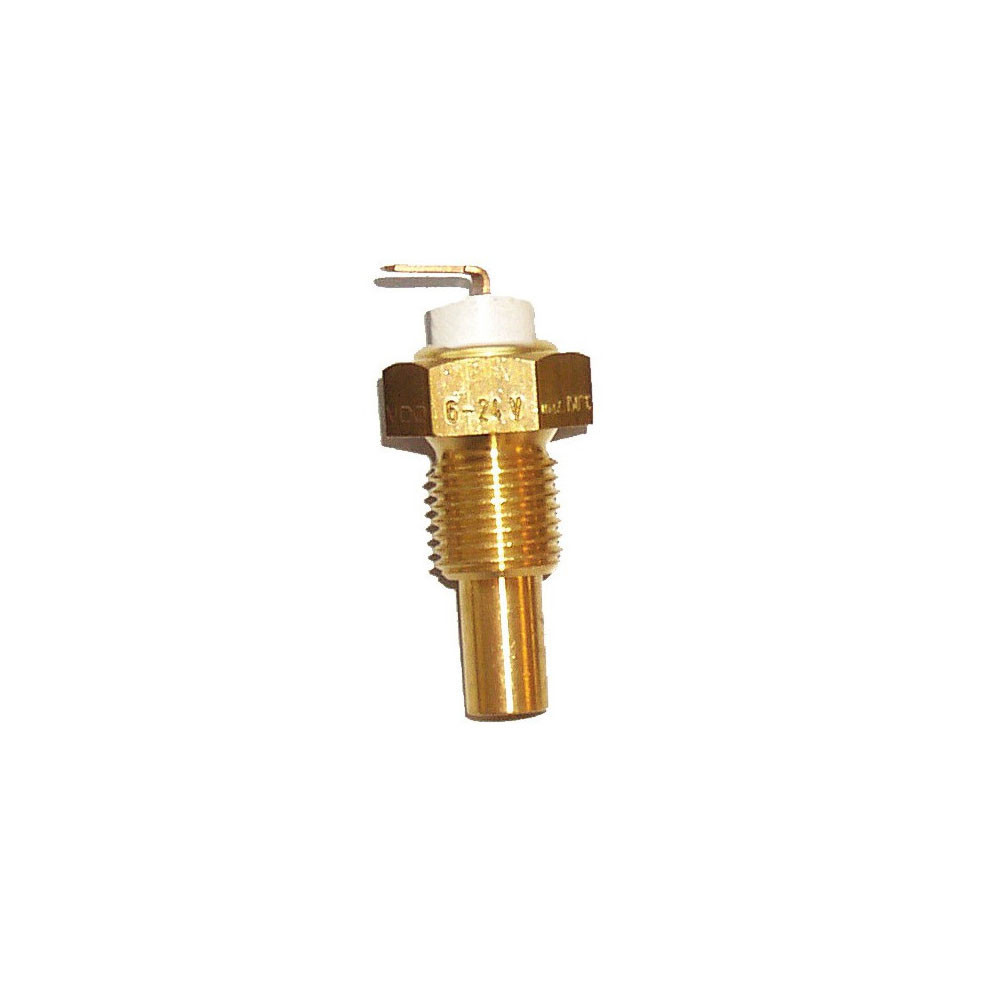

Oil temperature measurement with this VDO oil temperature sensor is based on a resistive signal ranging from 322.8 to 18.6 ?. This part number covers a temperature range of +50 to 150 °C and uses an M14×150 connection.
The 322.8 to 18.6 ? outlet must match the electrical specifications of the gauge or indicator being used. An identical display range alone is not sufficient to guarantee compatibility. This version does not include an alarm contact.
Technical Specifications
- Brand: VDO
- Manufacturer Part Number: A2C1754930001
- Type: Oil temperature sensor
- Measurement range: +50 to 150 °C
- Thread: M14×150
- Resistive signal: 322.8 to 18.6 ?
- Operating voltage: 6 to 24 V DC
- Alarm contact: None
- Type of ground: Ground via the probe body

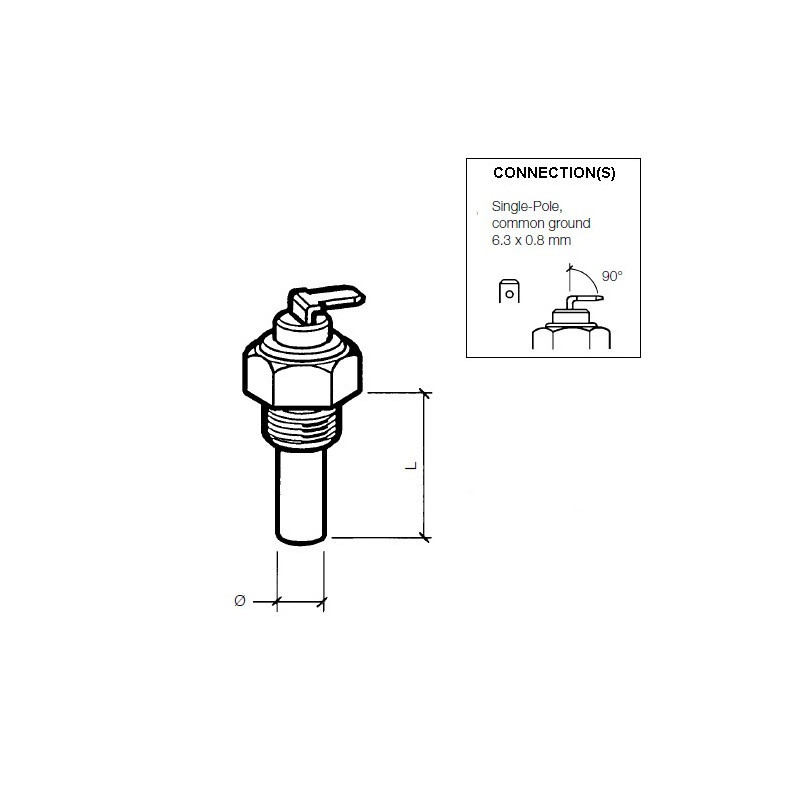

- Measurement connection: 6.3 x 0.8 mm flat plug
Compatibility and Mounting
Check the M14×150 thread, the resistance curve, and the connection before mounting. The probe body must maintain electrical continuity with the circuit ground.
