VDO Water Temperature Sensor, +40 to 120 °C, 1/2-14 NPTF, 323-803-001-019D - V-001019 - 323-803-001-019D - 3661768339770

VDO Cooling Fluid Temperature Sensor, +40 to 120 °C, 1/2-14 NPTF, with 95 °C Alert

Reference: V-001019

Supplier Ref.: 323-803-001-019D

Learn more

CHF 57.15 Tax included

CHF 63.50 -10% Discount

Promotion ends in: 04 D 23 H 50 M 10 S

Available to order

Unavailable in store (Promasens)

Within 30 days on average.

CHF 63.50 -10%

CHF 57.15 (tax incl.)

Earn 57 loyalty points

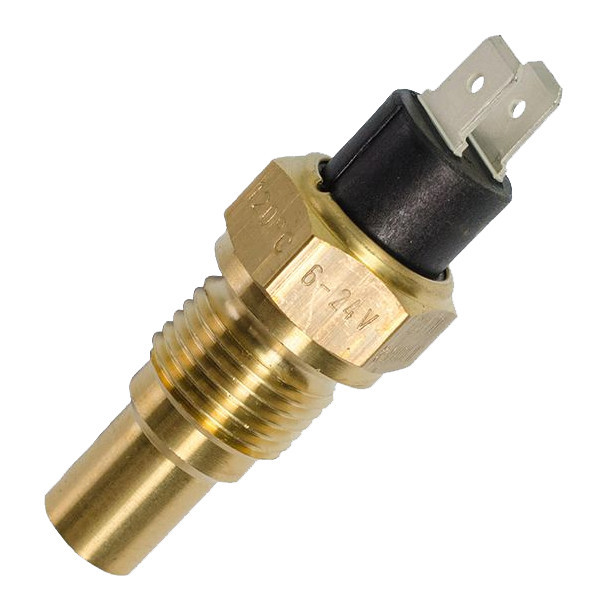

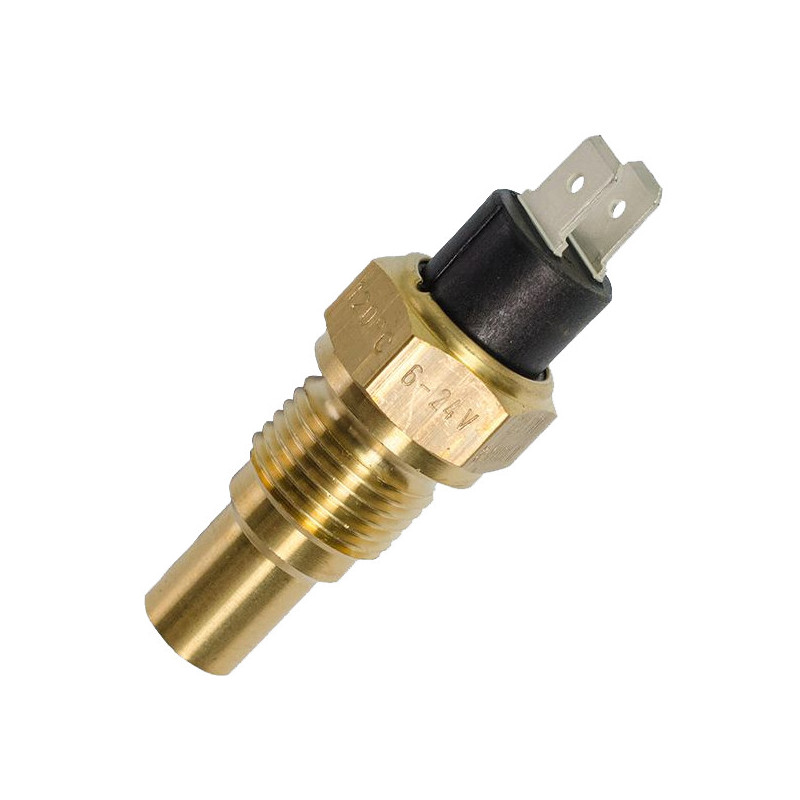

The VDO cooling fluid temperature sensor with a 1/2-14 NPTF connection is used to measure cooling fluid temperature. It operates within the range of +40 to 120 °C and outputs a resistive signal intended for use with a compatible temperature indicator.

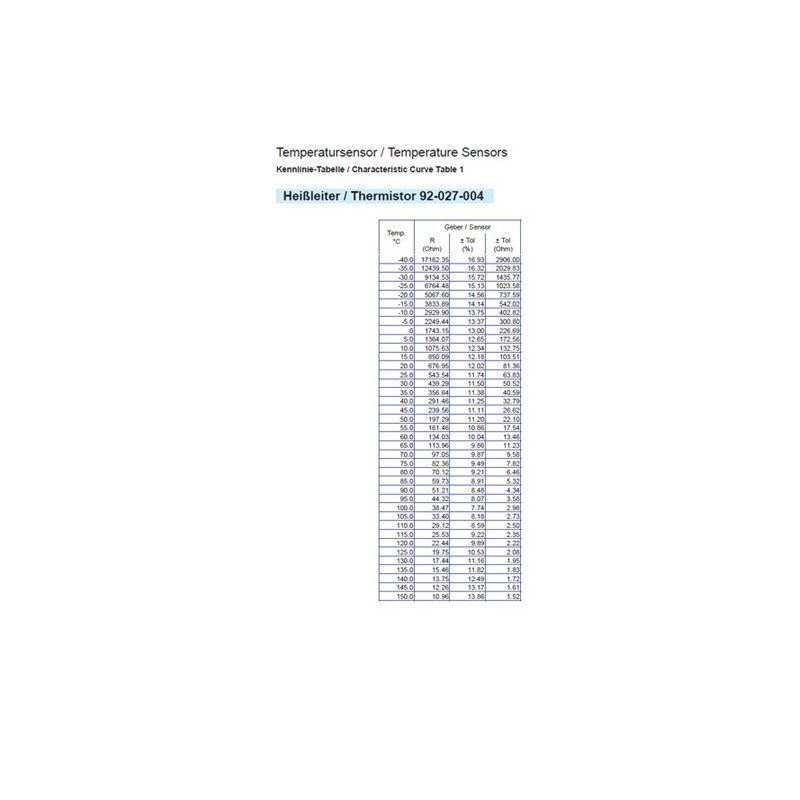

The outlet range of 287.4 to 22.7 ? must match the electrical characteristics of the gauge or indicator being used. An identical display range alone is not sufficient to guarantee compatibility. The 95 °C ± 3 °C alarm contact provides a separate function from the measurement, designed to control a compatible indicator light.

Technical Specifications

Brand: VDO
Manufacturer Part Number: 323-803-001-019D
Type: Cooling fluid temperature sensor
Measurement range: +40 to 120 °C
Thread: 1/2-14 NPTF
Resistive signal: 287.4 to 22.7 ?
Operating voltage: 6 to 24 V DC
Contact d’alerte: 95 °C ± 3 °C
Type of ground: Ground via the probe body

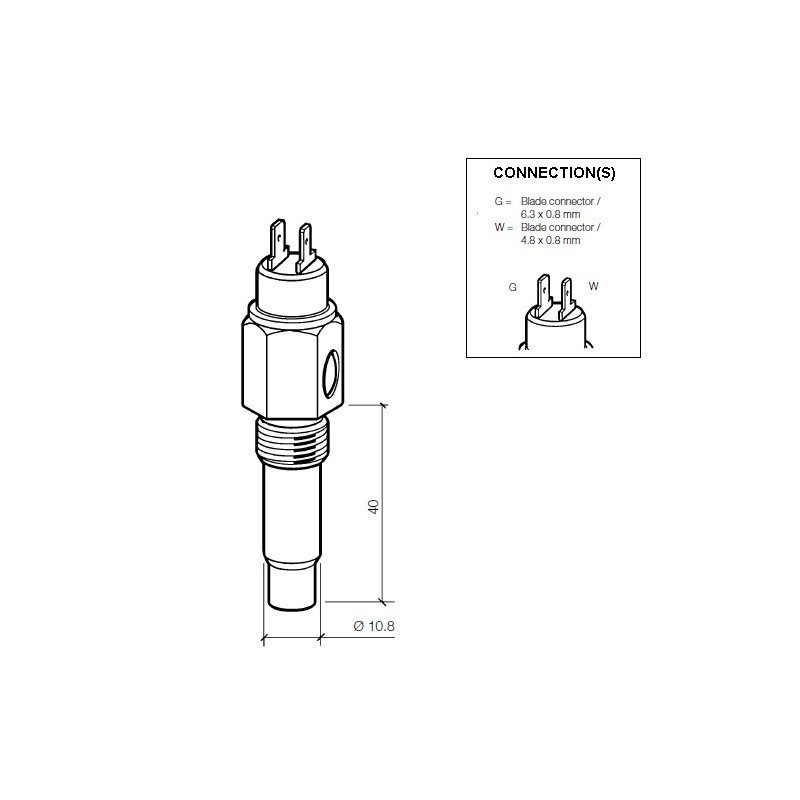

Measurement connection: 6.3 x 0.8 mm flat plug
Alarm contact connection: 6.3 x 0.8 mm flat plug

Compatibility and Mounting

Check the 1/2-14 NPTF thread, the resistance curve, and the connection before mounting. The body must maintain electrical continuity with the circuit ground.
