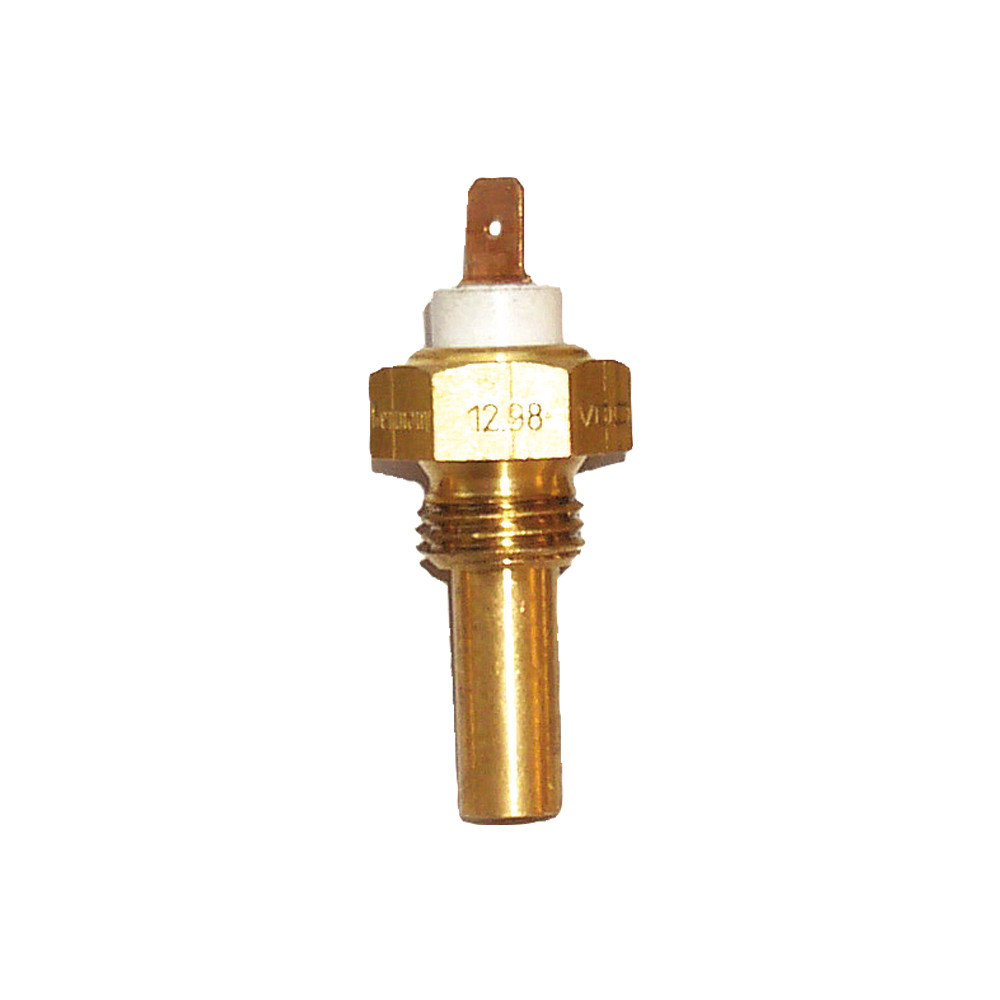

VDO Water Temperature Sensor, +40 to 120 °C, M14×150, 323-803-001-001D - V-001001 - 323-803-001-001D - 3661768217320

VDO Cooling Fluid Temperature Sensor, +40 to 120 °C, M14×150, with 100 °C Alert

Reference: V-001001

Supplier Ref.: 323-803-001-001D

Learn more

CHF 48.33 Tax included

CHF 53.70 -10% Discount

Promotion ends in: 04 D 20 H 40 M 46 S

In stock

Available in store (Promasens)

Shipped today from our warehouse

CHF 53.70 -10%

CHF 48.33 (tax incl.)

Earn 48 loyalty points

The VDO cooling fluid temperature sensor with an M14×150 connection is used to measure cooling fluid temperature. It operates within a range of +40 to 120 °C and outputs a resistive signal intended for a compatible temperature indicator.

The outlet range of 287.4 to 22.7 ? must match the electrical characteristics of the gauge or indicator being used. An identical display range alone is not sufficient to guarantee compatibility. The 100 °C ± 3 °C alarm contact provides a separate function from the measurement, designed to control a compatible warning light.

Technical Specifications

Brand: VDO
Manufacturer Part Number: 323-803-001-001D
Type: Cooling fluid temperature sensor
Measurement range: +40 to 120 °C
Thread: M14×150
Resistive signal: 287.4 to 22.7 ?
Operating voltage: 6 to 24 V DC
Contact d’alerte: 100 °C ± 3 °C
Type of grounding: Grounded through the probe body
Measurement connection: 6.3 x 0.8 mm flat plug
Alarm contact connection: 4.8 x 0.8 mm flat plug

Compatibility and Mounting

Check the M14×150 thread, the resistance curve, and the connection before mounting. The probe body must maintain electrical continuity with the circuit ground.
