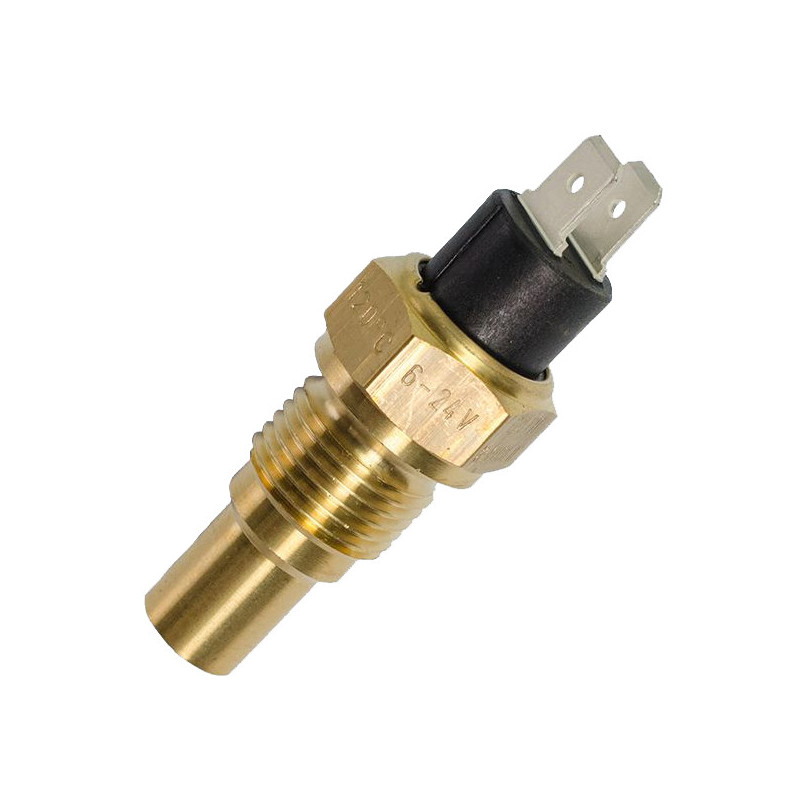

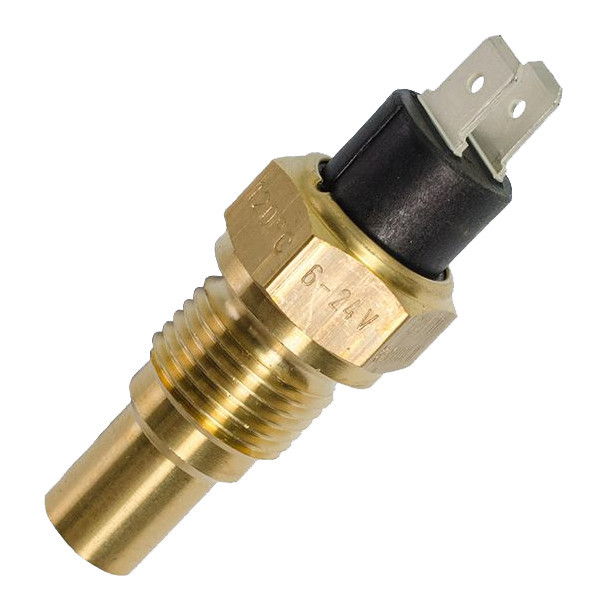

VDO Cooling Fluid Temperature Sensor, +40 to 120 °C, 5/8-18 NF-3, with 95 °C alert

The VDO cooling fluid temperature sensor with a 5/8-18 NF-3 connection is used to measure cooling fluid temperature. It operates within the range of +40 to 120 °C and outputs a resistive signal intended for a compatible temperature indicator.

The outlet range of 287.4 to 22.7 ? must match the electrical specifications of the gauge or indicator being used. An identical display range alone is not sufficient to guarantee compatibility. The 95 °C ± 3 °C alarm contact provides a separate function from the measurement, designed to control a compatible warning light.

Technical Specifications

• Brand: VDO
• Manufacturer Part Number: 323-803-001-011D
• Type: Cooling fluid temperature sensor
• Measurement range: +40 to 120 °C
• Thread: 5/8-18 NF-3

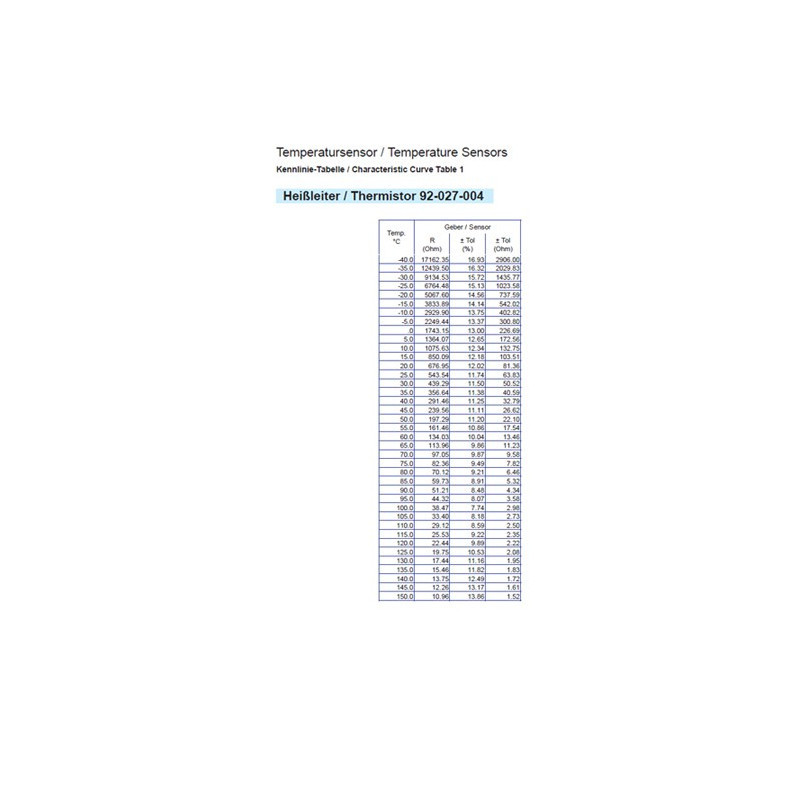

• Resistive signal: 287.4 to 22.7 ?
• Operating voltage: 6 to 24 V DC
• Contact d’alerte: 95 °C ± 3 °C
• Type of grounding: Grounded through the probe body

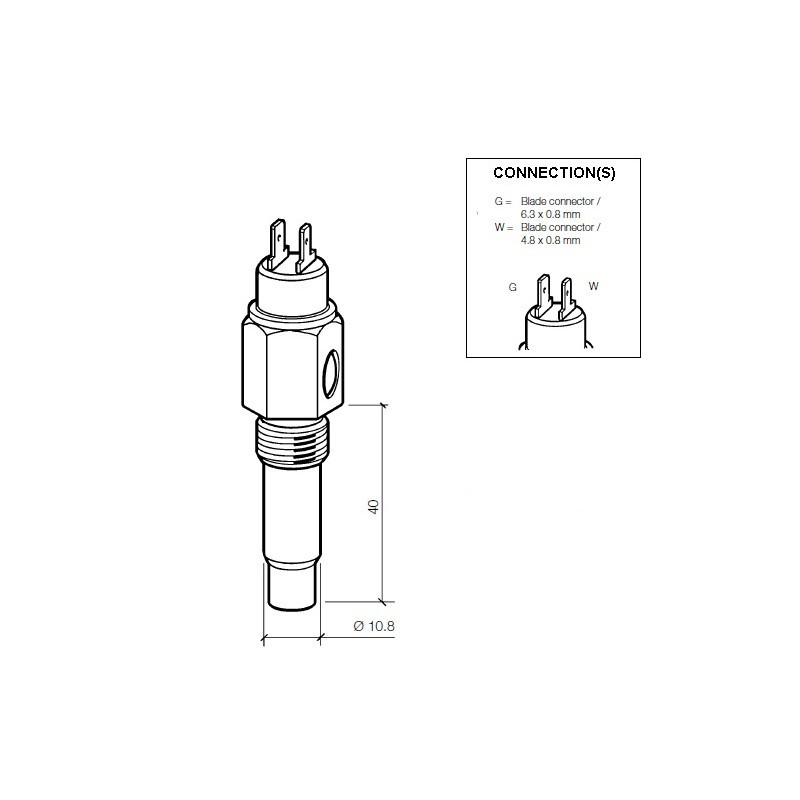

• Measurement connection: 6.3 x 0.8 mm flat plug
• Alarm contact connection: 6.3 x 0.8 mm flat plug

Compatibility and Mounting

Check the 5/8-18 NF-3 thread, the resistance curve, and the connection before mounting. The probe body must maintain electrical continuity with the circuit ground.
