VDO Oil Temperature Sensor, +50 to 150 °C, M14×150, A2C1755470001 - V-002002 - A2C1755470001 - 3661768217399

VDO Oil Temperature Sensor, +50 to 150 °C, M14×150, with 120 °C Alert

Reference: V-002002

Supplier Ref.: A2C1755470001

Learn more

CHF 48.42 Tax included

CHF 53.80 -10% Discount

Promotion ends in: 04 D 21 H 31 M 29 S

In stock

Available in store (Promasens)

Shipped on 2026-10-12 from our warehouse

CHF 53.80 -10%

CHF 48.42 (tax incl.)

Earn 48 loyalty points

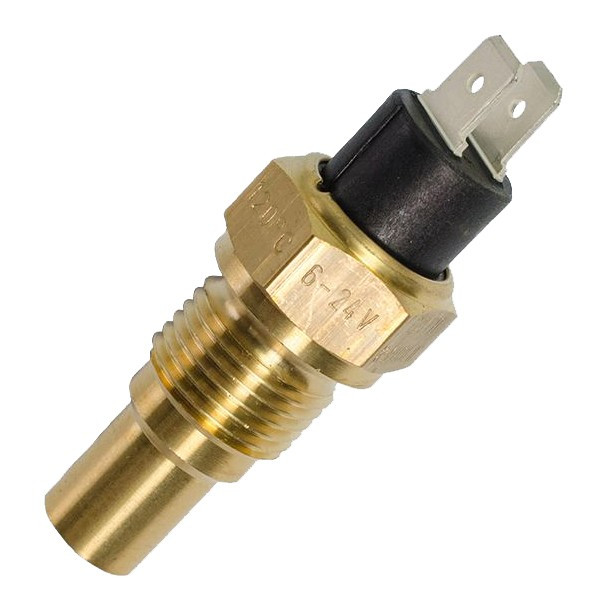

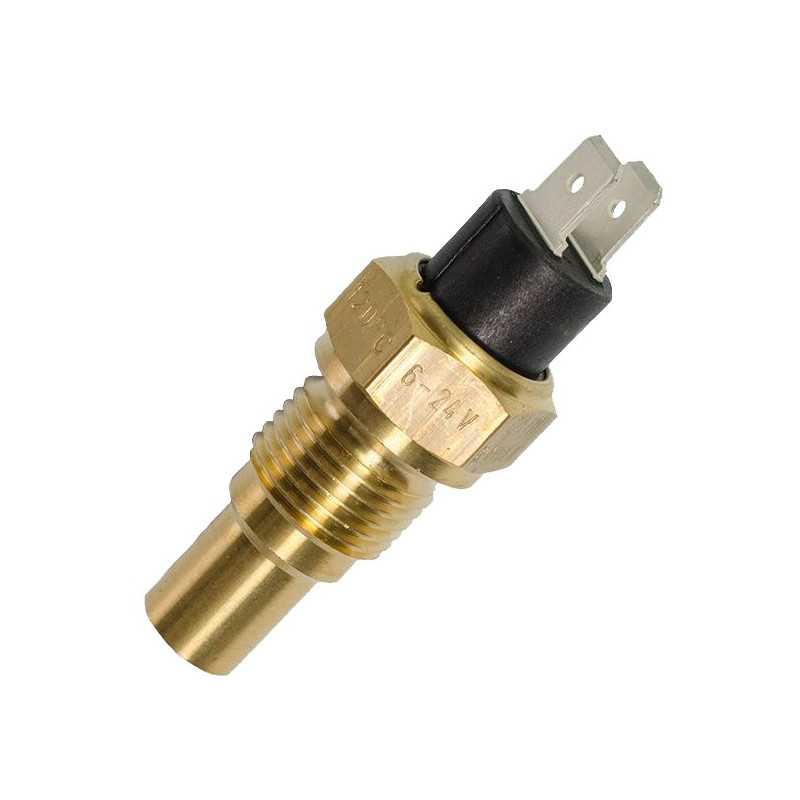

Oil temperature measurement with this VDO oil temperature sensor is based on a resistive signal ranging from 322.8 to 18.6 ?. This part number covers a temperature range of +50 to 150 °C and uses an M14×150 connector.

The 322.8 to 18.6 ? outlet must match the electrical specifications of the gauge or indicator being used. An identical display range is not sufficient to guarantee compatibility. The 120 °C ± 3 °C alarm contact provides a separate function from the measurement, designed to control a compatible warning light.

Technical Specifications

Brand: VDO
Manufacturer Part Number: A2C1755470001
Type: Oil Temperature Sensor
Measurement range: +50 to 150 °C
Thread: M14×150

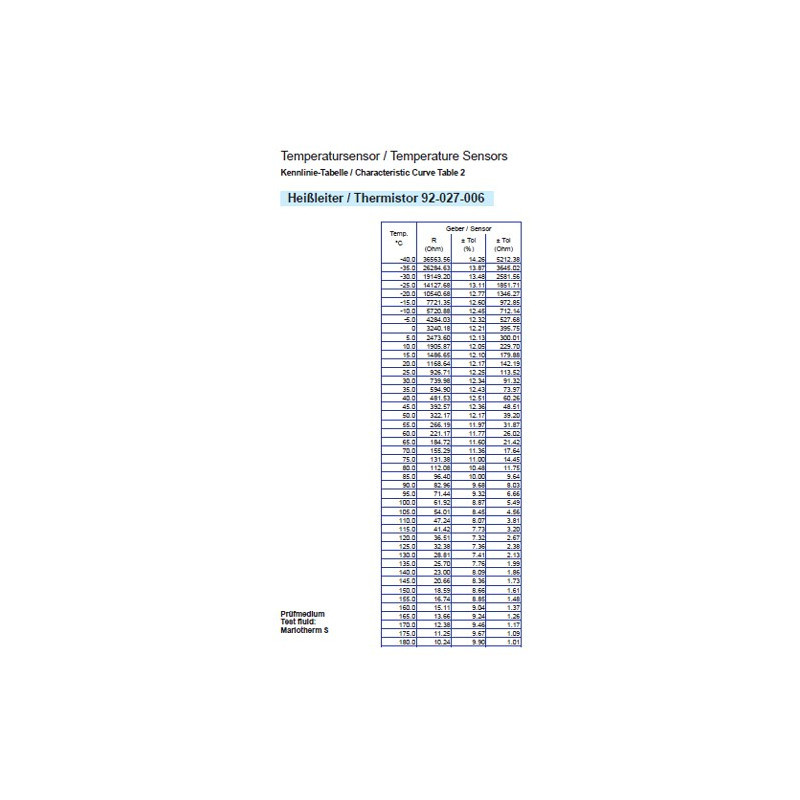

Resistive signal: 322.8 to 18.6 ?
Operating voltage: 6 to 24 V DC
Contact d’alerte: 120 °C ± 3 °C
Type of grounding: Grounded through the probe body

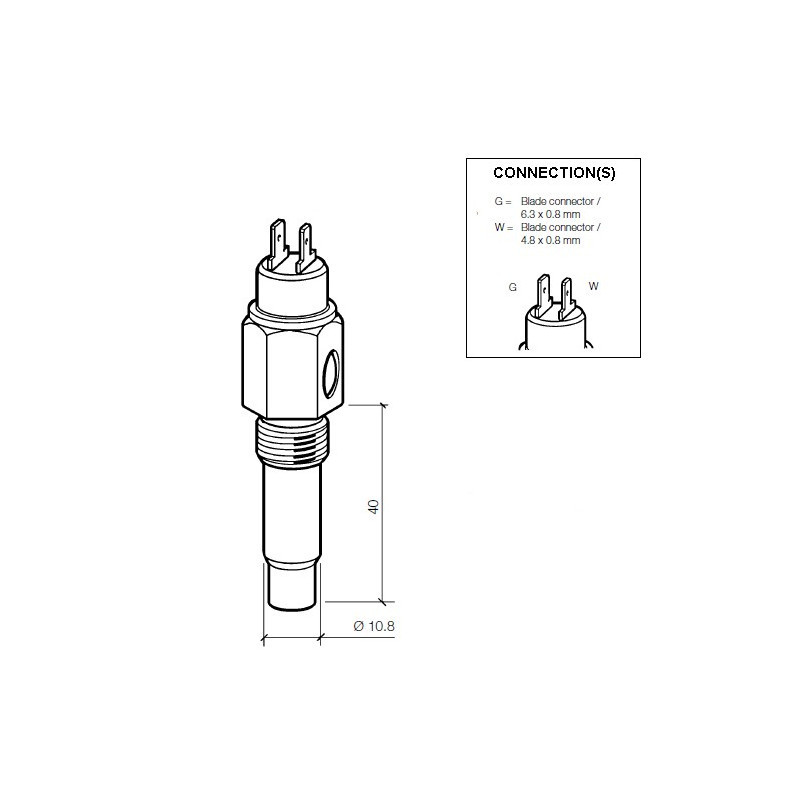

Measurement connection: 6.3 x 0.8 mm flat plug
Alarm contact connection: 6.3 x 0.8 mm flat plug

Compatibility and Mounting

Check the M14×150 thread, the resistance curve, and the connection before mounting. The probe body must maintain electrical continuity with the circuit ground.
