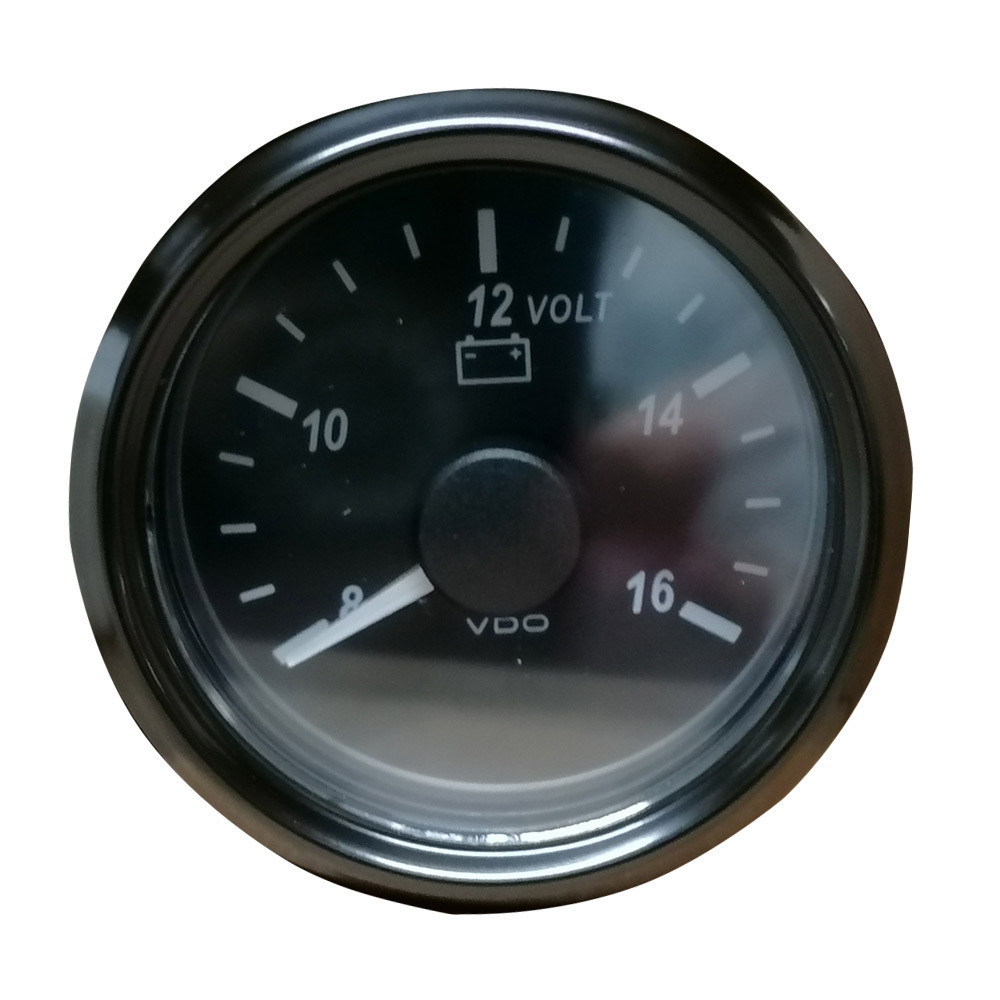

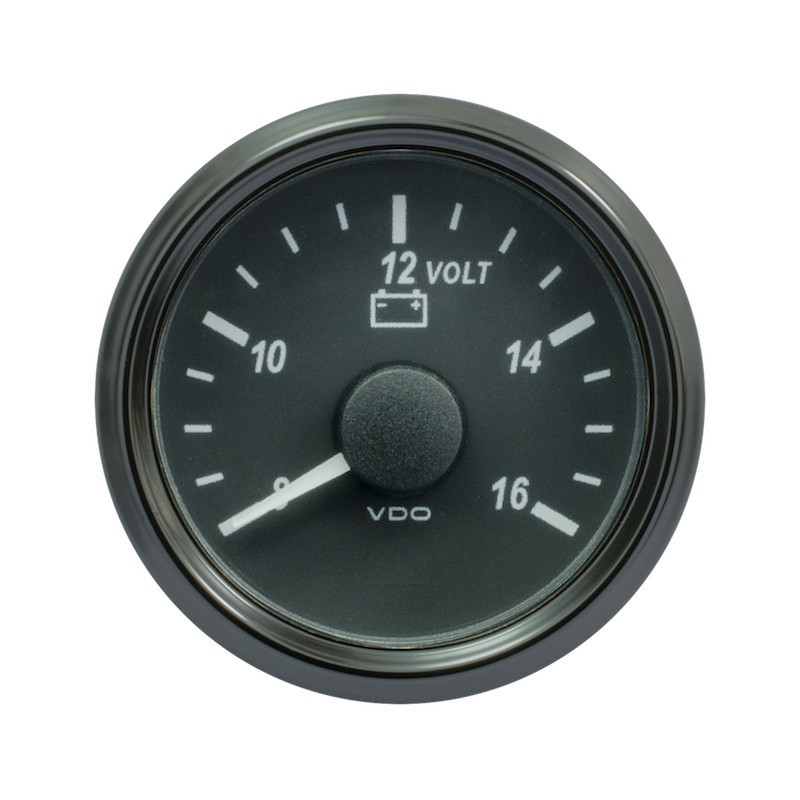

VDO SingleViu Voltmeter, Ø52 mm, 8 to 16 V
Reference:
V-VO-3832770001
Supplier Ref.:
A2C3832770001
The VDO SingleViu voltmeter displays the voltage of the electrical circuit on a black dial. Its 52 mm bolt hole diameter allows it to be integrated into the dashboard. The display range is 8 to 16 V.
The analog connection uses 0 to 16 V DC. Verify compatibility with the signal or waveform of the sensor being used before wiring. The SingleViu range also supports the CAN bus with the SAE J1939 protocol. The operating mode must match the installation.
Technical Specifications
- Brand: VDO
- Manufacturer Part Number: A2C3832770001
- Type: Voltmeter
- Range: SingleViu
- Bolt hole diameter: 52 mm
- Display range: 8 to 16 V
- Operating voltage: 8 to 32 V DC
- Dial: Black
- Analog signal: 0 to 16 V DC
- Communication: Analog or CAN SAE J1939
- Connector: 8-pin Molex
- Lighting: Programmable multicolor LED
- Connecting cable: Must be ordered separately
Compatibility and Mounting
Check the bolt hole diameter, the available space behind the dashboard, and the wiring diagram.
-
Diameter in mm52
-
Background ColorBlack
