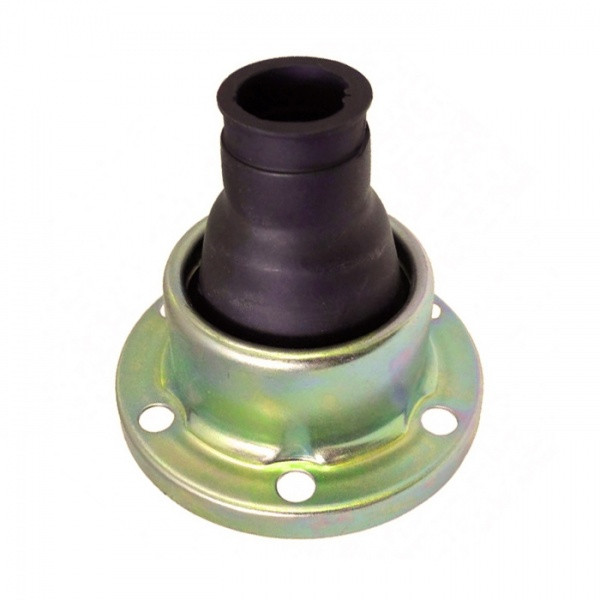

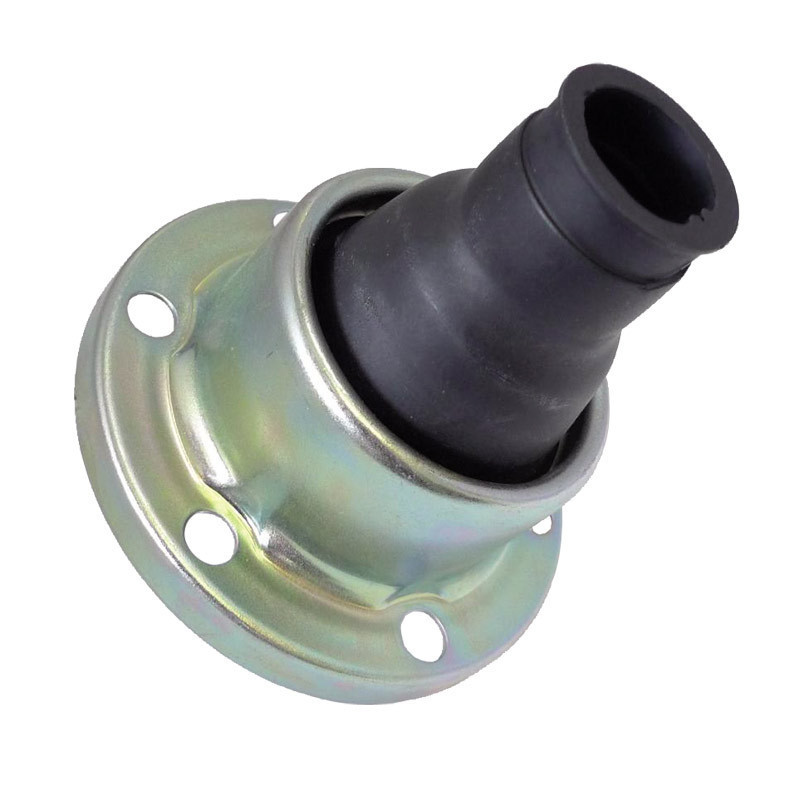

Lobro CV Joint Gasket Bellows, 94 mm diameter, F3

The GKN Motorsport “Scatra Fast Boot” quick-release protective boot is designed for size 10 lobro cv joints and tripod joints used in motorsports. It consists of an outer steel flange with a passivated zinc finish and an aerodynamic reinforced rubber boot, offering excellent resistance and durability for competition applications.
This model is intended for size 10 Formula Ford joints, 94 mm in diameter, with 6 mounting holes with a center distance of 80 mm. Its aerodynamic profile is designed for high rotational speeds and is compatible with shaft angles up to 11°. Depending on the mounting, a slight modification of the mounting holes may be necessary.
Technical Specifications
Brand: GKN Motorsport
Type: Scatra Fast Boot protective bellows
Compatible gasket diameter: 94 mm
Compatible size: 10
Mounting Center Distance (pcd): 80 mm
Number of bolt holes: 6
Hole diameter: 8.2 mm
Maximum shaft angle: 11°
Construction:


• Outer steel flange with passivated zinc finish
• Aerodynamic bellows made of reinforced rubber

Compatibility:


• GKN Motorsport lobro cv joint gaskets, size 10
• GKN Motorsport size 10 tripod gaskets
• Formula Ford applications

Mounting Note:


• A slight modification of the mounting holes may be necessary depending on the application.

Key Features


• Developed for motorsports and racing applications
• Scatra Fast Boot aerodynamic design optimized for high rotational speeds
• Zinc-passivated finish for greater durability
• Compatible with shaft angles up to 11°
• Compatible with size 10 lobro cv joint gaskets and GKN Motorsport tripods
• Suitable for Formula Ford applications
