Lobro GKN Motorsport Size 15 Wide-Angle Protective Gasket Bellows
Reference:
AS-MS6N011
Supplier Ref.:
MS6N011

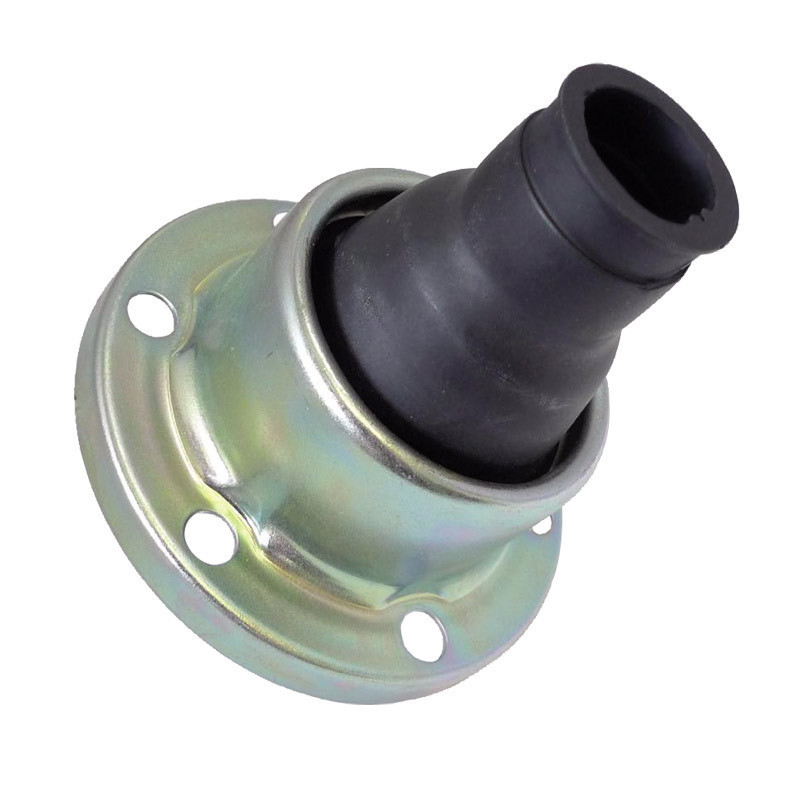

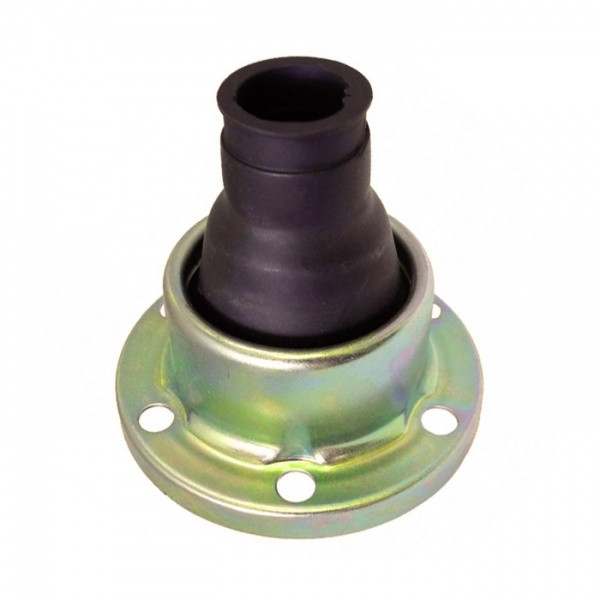

The GKN Motorsport “Scatra Fast Boot” wide-angle protective boot is designed for size 15 lobro cv joints and tripod gaskets used in motorsports. It consists of an outer steel flange with a passivated zinc finish and an aerodynamic reinforced rubber boot, offering excellent resistance and durability in competition.
Compatible with 108 mm diameter joints featuring 6 mounting holes with a center distance of 94 mm, this model features a Scatra Fast Boot design optimized for high rotational speeds. Its wide-angle design allows for use with a shaft angle of up to 14°, meeting the demands of competition drivetrains.
Technical Specifications
Brand: GKN Motorsport
Type: Scatra Fast Boot wide-angle protective boot
Compatible gasket diameter: 108 mm
Compatible size: 15
Mounting Center Distance (pcd): 94 mm
Number of bolt holes: 6
Maximum shaft angle: 14°
Construction:
- Outer steel flange with passivated zinc finish
- Aerodynamic bellows made of reinforced rubber
Compatibility:
- GKN Motorsport lobro cv joint gaskets, size 15
- GKN Motorsport size 15 tripod gaskets
Key Features
- Designed for motorsports and racing applications
- Wide-angle version compatible with shaft angles up to 14°
- Scatra Fast Boot aerodynamic design optimized for high rotational speeds
- Passivated zinc finish for greater durability
- Compatible with lobro cv joints and size 15 GKN Motorsport tripods
