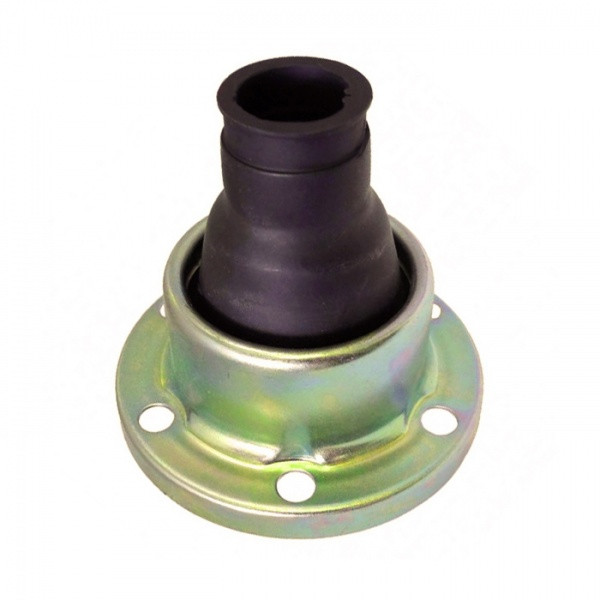

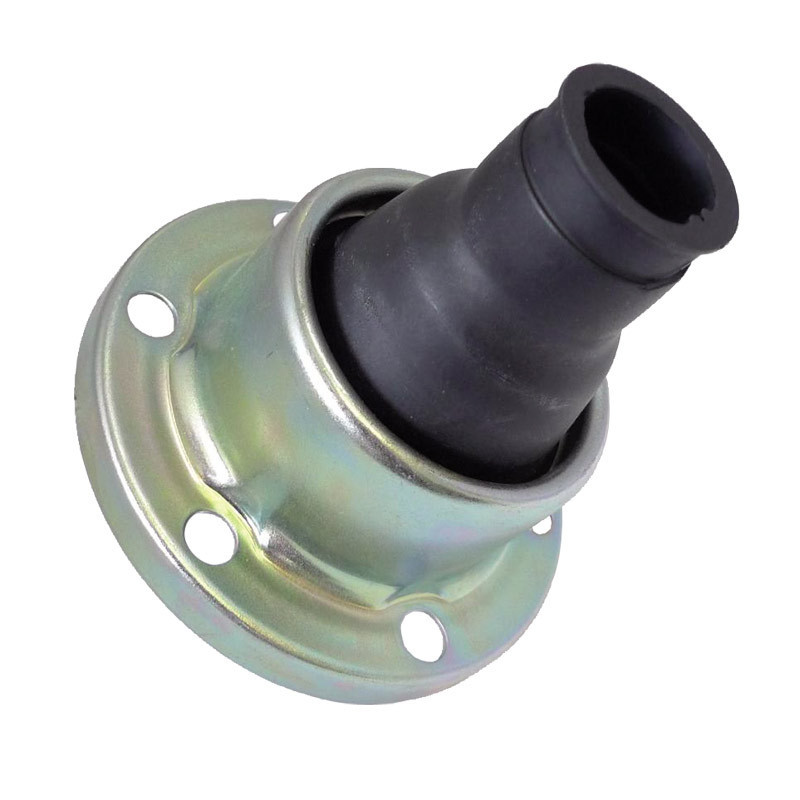

Lobro CV Joint Gasket Bellows, 100 mm diameter

The GKN Motorsport “Scatra Fast Boot” quick-mount protective boot is designed for size 12 lobro cv joints and tripod joints used in motorsports. It consists of an outer steel flange with a passivated zinc finish and an aerodynamic reinforced rubber boot, offering excellent resistance and durability for competition applications.
Compatible with 100 mm diameter seals featuring 6 mounting holes with a center distance of 86 mm, this boot features an aerodynamic Scatra Fast Boot design developed for high rotational speeds. It is compatible with transmissions with a shaft angle of up to 11°.
Technical Specifications
Brand: GKN Motorsport
Type: Scatra Fast Boot protection boot
Compatible Gasket Diameter: 100 mm
Compatible size: 12
Center distance (pcd): 86 mm
Number of bolt holes: 6
Maximum shaft angle: 11°
Construction:


• Outer steel flange with passivated zinc finish
• Aerodynamic bellows made of reinforced rubber

Compatibility:


• GKN Motorsport lobro cv joint gaskets, size 12
• GKN Motorsport size 12 tripod gaskets

Key Features


• Developed for motorsports and racing applications
• Scatra Fast Boot aerodynamic design optimized for high rotational speeds
• Zinc-passivated finish for extended service life
• Compatible with shaft angles up to 11°
• Compatible with size 12 lobro cv joints and GKN Motorsport tripods
