Lobro and GKN Motorsport Size 15 Protective Gasket Bellows and Tripod
Reference:
AS-MS6N001
Supplier Ref.:
MS6N001

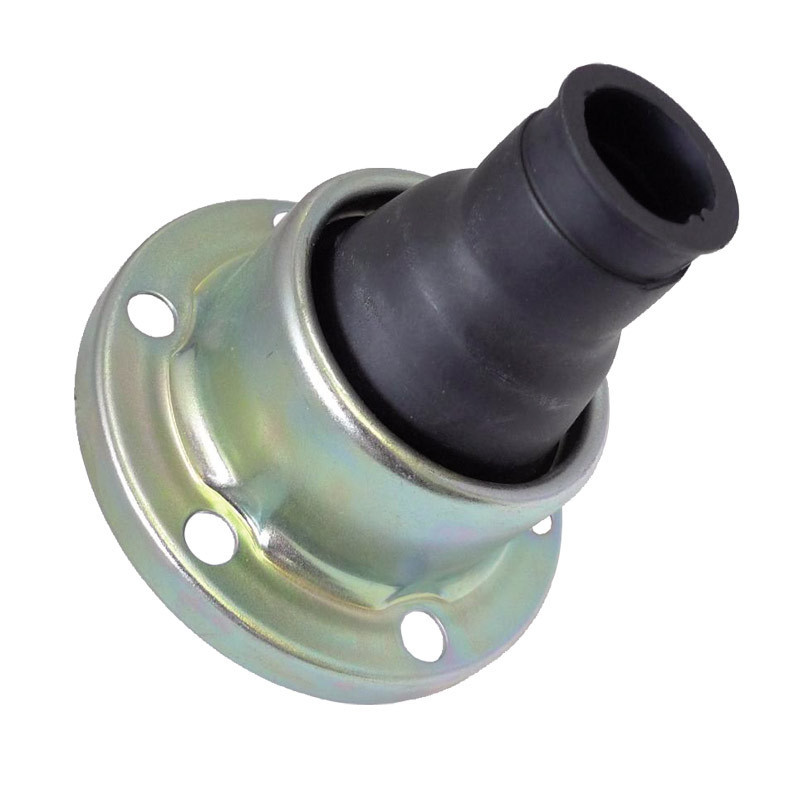

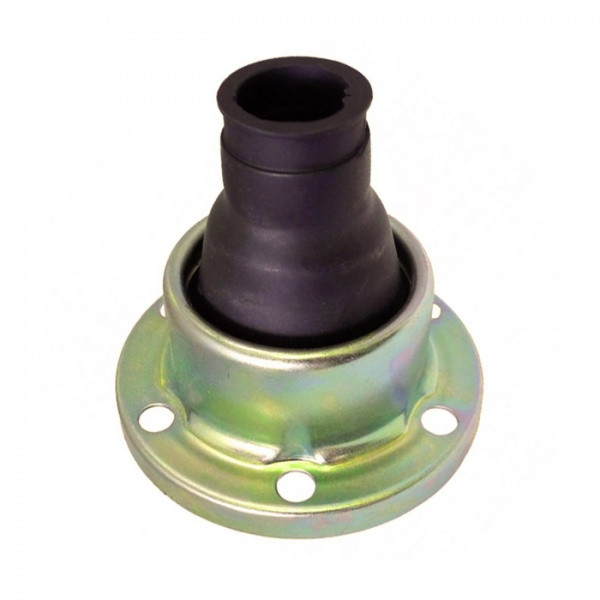

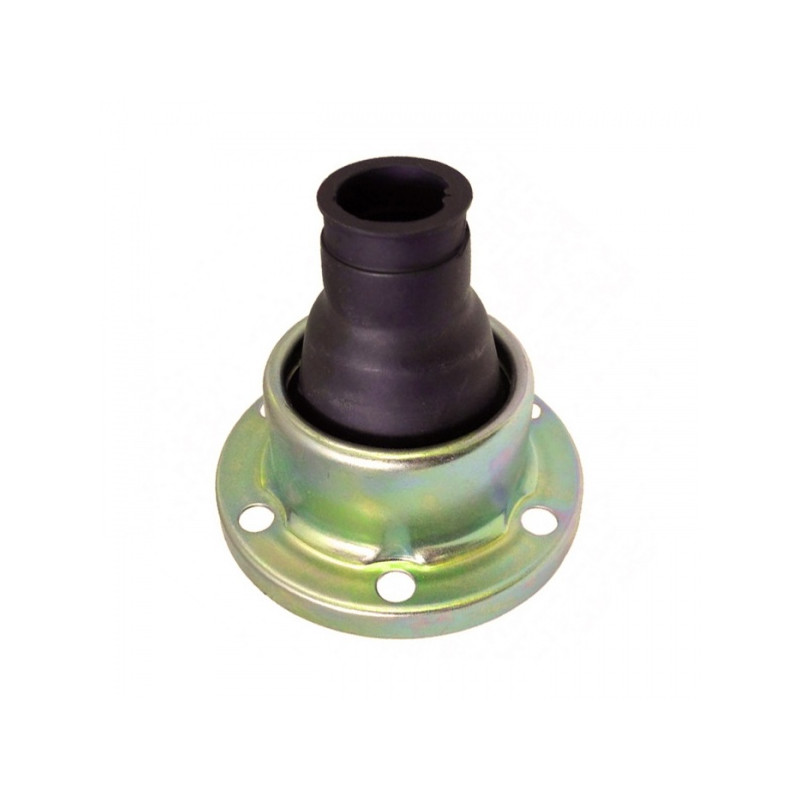

The GKN Motorsport protective boot is a Scatra Fast Boot model designed for lobro cv joints and Size 15 tripod gaskets intended for motorsports applications. It features an outer steel flange with a passivated zinc finish and an inner reinforced rubber boot, offering excellent resistance and durability under heavy use.
Compatible with 108 mm diameter seals featuring 6 mounting holes with a center distance of 94 mm, this boot features an aerodynamic design developed for high rotational speeds. It accommodates a shaft angle of up to 11°, thereby meeting the requirements of competition transmissions.
Technical Specifications
Brand: GKN Motorsport
Part Number: MS6N001
Type: Scatra Fast Boot protective bellows

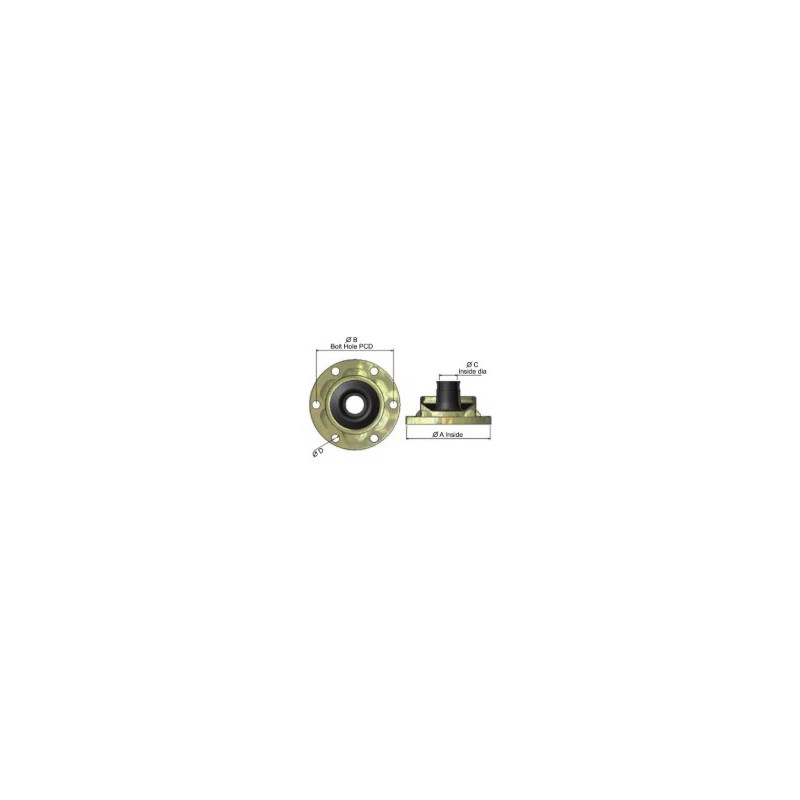

Compatible gasket diameter: 108 mm
Compatible size: 15
Center distance for mounting bolt (pcd): 94 mm
Number of bolt holes: 6
Maximum shaft angle: 11°
Construction:
- Outer steel flange with passivated zinc finish
- Inner bellows made of reinforced rubber with trusses
Compatibility:
- GKN Motorsport lobro cv joint gasket, size 15
- GKN Motorsport size 15 tripod gaskets
Key Features
- Designed for motorsports and racing applications
- Scatra Fast Boot aerodynamic design optimized for high rotational speeds
- Zinc-passivated finish for extended service life
- Compatible with shaft angles up to 11°
- Compatible with size 15 lobro cv joints and GKN Motorsport tripods
