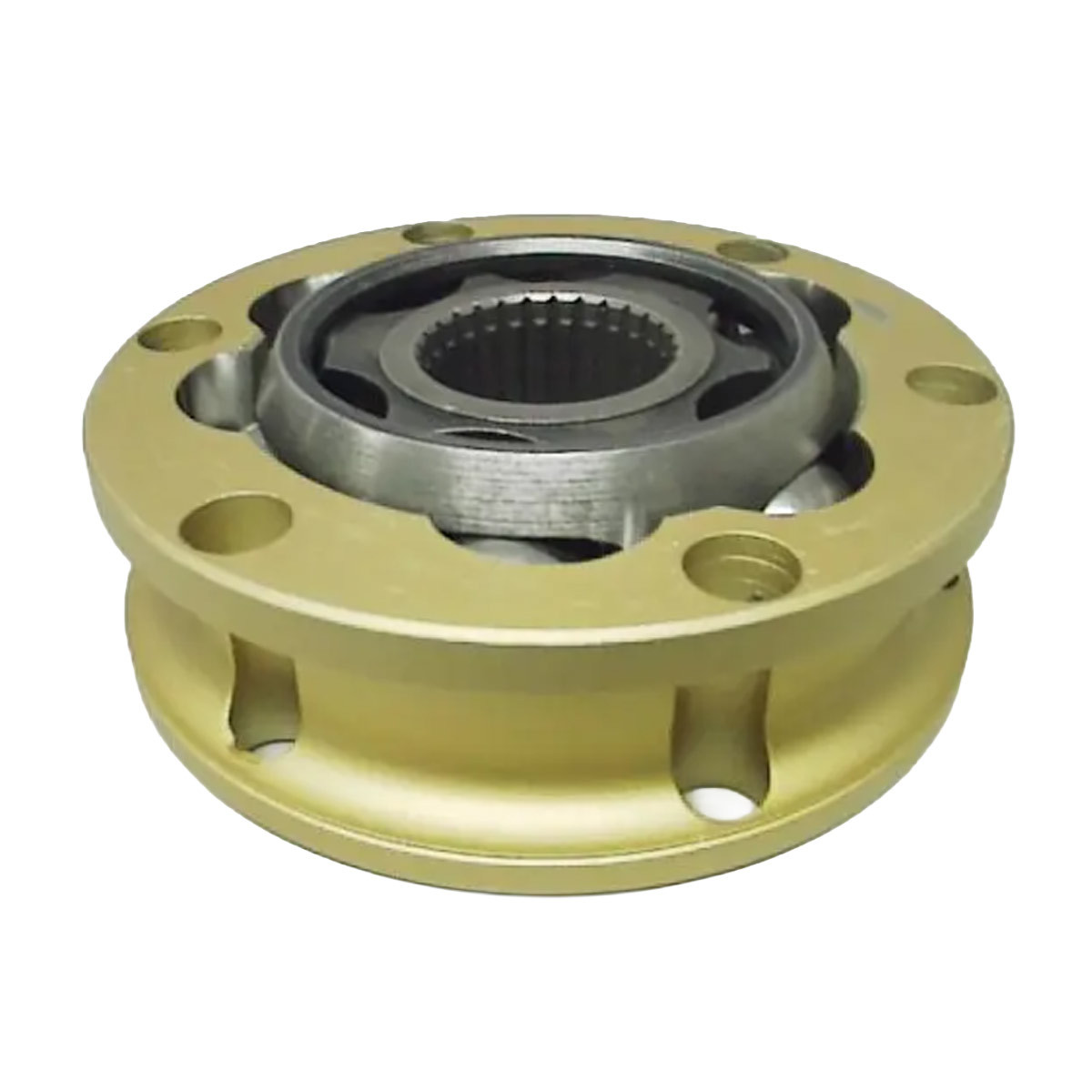

GKN Lightweight Lobro CV Joint, 28 splines, Ø108 mm - Thickness 32 mm - Center distance 94 mm

The GKN Motorsport MS3N044 lightweight lobro cv joint is a submersible constant-velocity joint developed for competition drivetrains subjected to the most extreme conditions. Drawing on GKN Motorsport’s more than 30 years of experience in developing transmission lines for motorsports, it offers an excellent balance of mechanical efficiency, reliability, and durability for rally, circuit, hill climb, and track day vehicles.

The MS3N044 incorporates GKN Motorsport’s exclusive Lightweight & Easy Motion technology. This lightweight, low-friction design reduces rotating mass and internal friction to improve the drivetrain’s mechanical efficiency. It promotes more efficient torque transmission, limits heat build-up under heavy loads, and helps extend the CV joint’s service life.

This model also features Deep Plunge technology, which provides significant axial travel to accommodate suspension movements without placing excessive stress on the propeller shafts. Combined with an operating angle of ±13°, this design ensures smooth operation and excellent reliability, even under the most severe operating conditions.

Manufactured to GKN Motorsport quality standards, the MS3N044 meets the requirements of tuners and racing teams seeking a drivetrain capable of withstanding high power levels while maintaining maximum efficiency and long service life.

Sold individually.

Technical Specifications

Brand: GKN Motorsport

Manufacturer Part Number: MS3N044

Type: Lightweight submersible constant-velocity lobro cv joint (lobro cv joint)

Outside diameter: 108 mm

Center distance (pcd): 94 mm

Bolt hole diameter: 10 mm

Thickness: 32 mm

Number of splines: 28

Operating angle: ±13°

Weight: 1.34 kg

Technologies:

• Lightweight & Easy Motion: a lightweight, low-friction design that reduces rotating mass, internal friction, and heat build-up to improve mechanical efficiency and torque transmission.
• Deep Plunge: significant axial travel that accommodates suspension movements while limiting stress on the propeller shafts.

Benefits:

• Optimized mechanical efficiency
• More efficient torque transmission
• Reduced operating temperature
• Excellent abrasion resistance
• High reliability under heavy loads
• Developed for motorsports

Applications:

• Rally
• Track
• Hill climb
• Track day
• Motorsports

Packaging:

• Sold individually
