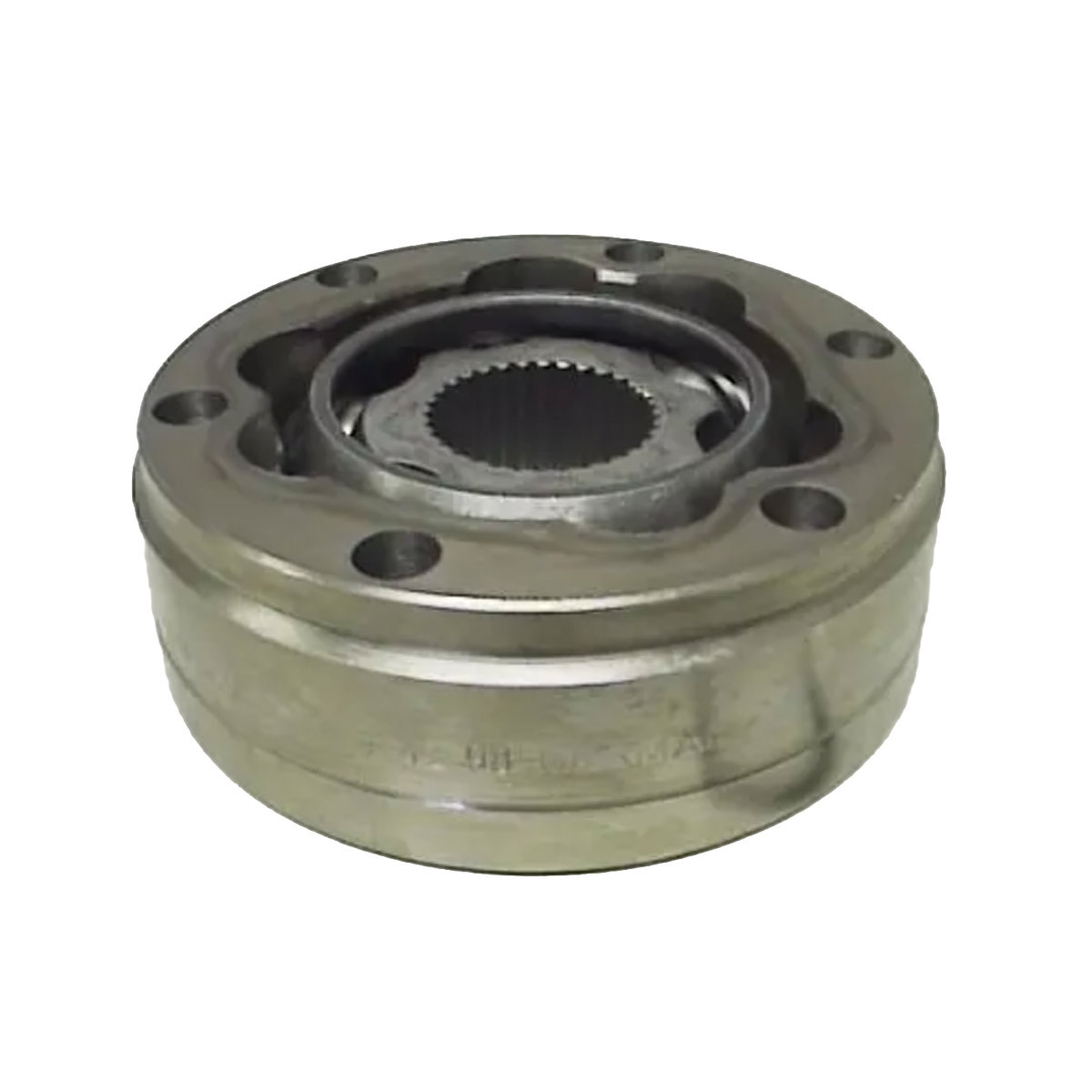

GKN Motorsport lobro cv joint Ø94 mm - Size 10

The GKN Motorsport MS3J001 Lobro cv joint is a size 10 plunging constant-velocity joint (Plunging Constant Velocity Joint) developed for motorsports applications. With an outside diameter of 94 mm, it is designed to ensure smooth rotational movement in both wheel-side and differential-side mountings.

Building on over 30 years of GKN Driveline transmission development, this standard lobro cv joint offers a high level of reliability and excellent service life. Plunging joints are typically used on the transmission side of front-wheel-drive vehicles, as well as on the front and rear of rear-wheel-drive or all-wheel-drive vehicles equipped with independent suspensions. This model is specified for Formula Ford and features an axial stroke of ±8 mm.

Technical Specifications

Brand: GKN Motorsport

PartNumber: MS3J001

Type: Lobro cv joint submerged

Specification: Standard

Outside diameter: 94 mm

Size: 10

Gasket width: 32 mm

Number of splines: 33

Number of holes: 6

Hole diameter: 8 mm

Axial stroke (Plunge): ±8 mm

Bellow compatibility: GKN MS6J002 Fast Boot

Applications:

• Formula Ford (standard specification)
• Motorsports

Key Features

• GKN Motorsport Submerged Constant-Velocity Joint
• Standard version used in motorsports
• Specified for Formula Ford
• High reliability and excellent service life
• Compatible with the GKN MS6J002 quick-connect bellows
