VDO Water Temperature Sensor, +40 to 120 °C, 5/8-18 NF-3, 323-803-001-002D - V-001002 - 323-803-001-002D - 3661768217337

VDO Cooling Fluid Temperature Sensor +40 to 120 °C 5/8-18 NF-3 with 98 °C Alert

Reference: V-001002

Supplier Ref.: 323-803-001-002D

Learn more

CHF 42.91 Tax included

CHF 47.68 -10% Discount

Promotion ends in: 04 D 20 H 40 M 24 S

Available to order

Unavailable in store (Promasens)

Within 30 days on average.

CHF 47.68 -10%

CHF 42.91 (tax incl.)

Earn 42 loyalty points

The VDO cooling fluid temperature sensor (+40 to 120 °C ) transmits cooling fluid temperature data to a compatible instrument. Its 5/8-18 NF-3 connection determines the mechanical mounting on the circuit.

The outlet range of 287.4 to 22.7 ? must match the electrical specifications of the gauge or indicator being used. An identical display range alone is not sufficient to guarantee compatibility. The 98 °C ± 3 °C alarm contact provides a function separate from the measurement, designed to activate a compatible warning light.

Technical Specifications

Brand: VDO
Manufacturer Part Number: 323-803-001-002D
Type: Cooling fluid temperature sensor
Measurement range: +40 to 120 °C
Thread: 5/8-18 NF-3
Resistance signal: 287.4 to 22.7 ?
Operating voltage: 6 to 24 V DC
Contact d’alerte: 98 °C ± 3 °C
Type of grounding: Grounded through the probe body

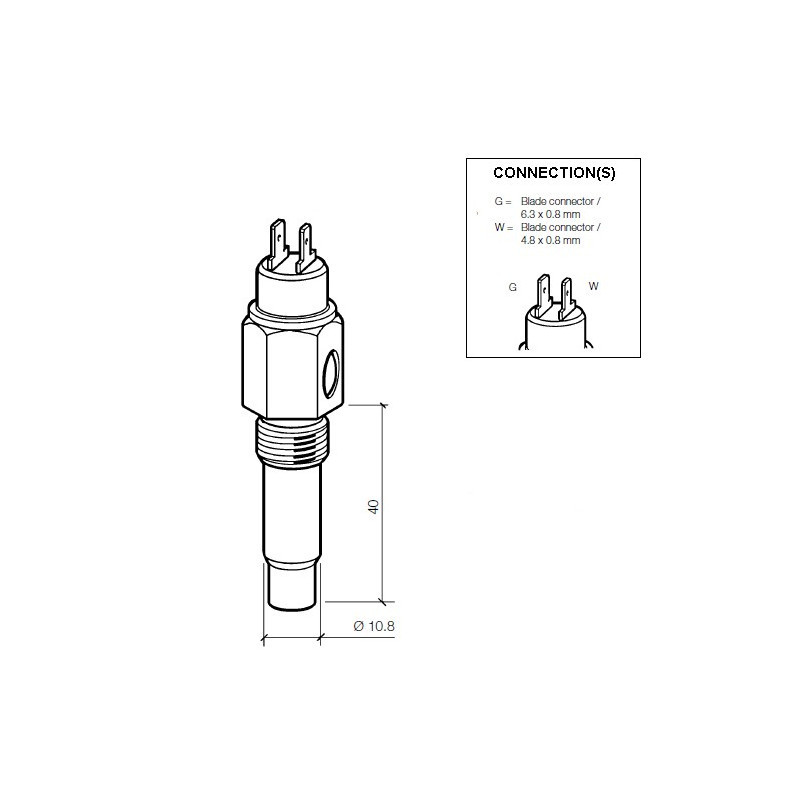

Measurement connection: 6.3 x 0.8 mm flat plug
Alarm contact connection: 6.3 x 0.8 mm flat plug

Compatibility and Mounting

Check the 5/8-18 NF-3 thread, the resistance curve, and the connection before mounting. The probe body must maintain electrical continuity with the circuit ground.
