VDO Oil Pressure Sensor, 0–10 bar, M12×150, with 0.5 bar alert

The VDO 0–10 bar oil pressure sensor transmits oil pressure data to a compatible instrument. Its M12×150 connector determines the mechanical mounting on the circuit.

The 10 to 184 ? outlet must match the electrical specifications of the gauge or indicator being used. An identical display range is not sufficient to guarantee compatibility. The 0.50 bar ± 0.15 bar alarm contact provides a function separate from the measurement, to control a compatible warning light.

Technical Specifications

• Brand: VDO
• Manufacturer Part Number: 360-081-030-022C
• Type: Oil pressure sensor
• Measurement range: 0 to 10 bar
• Thread: M12×150

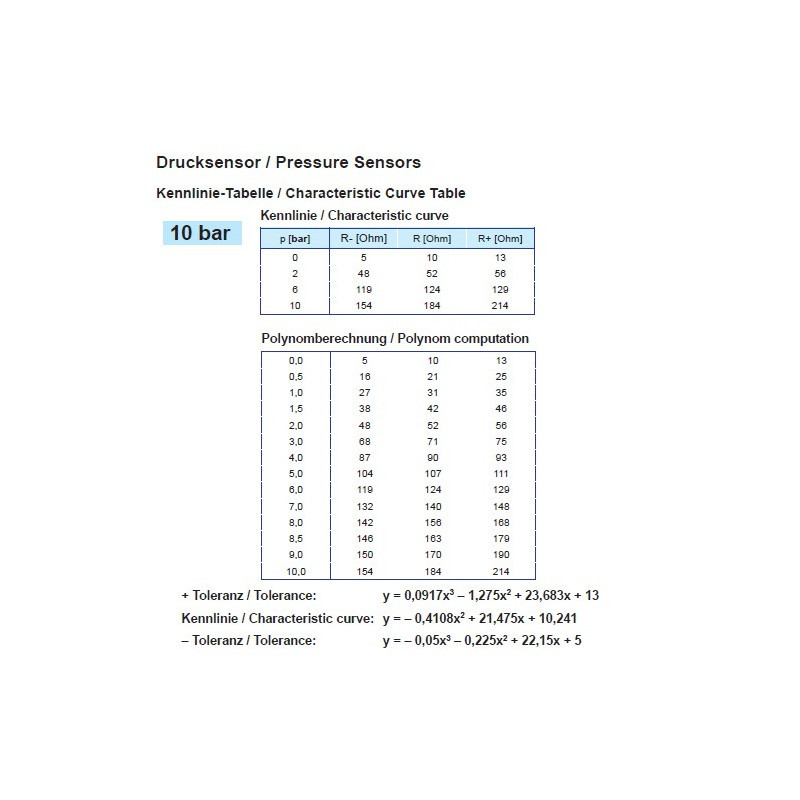

• Resistive signal: 10 to 184 ?
• Operating voltage: 6 to 24 V DC
• Contact d’alerte : 0.50 bar ± 0.15 bar

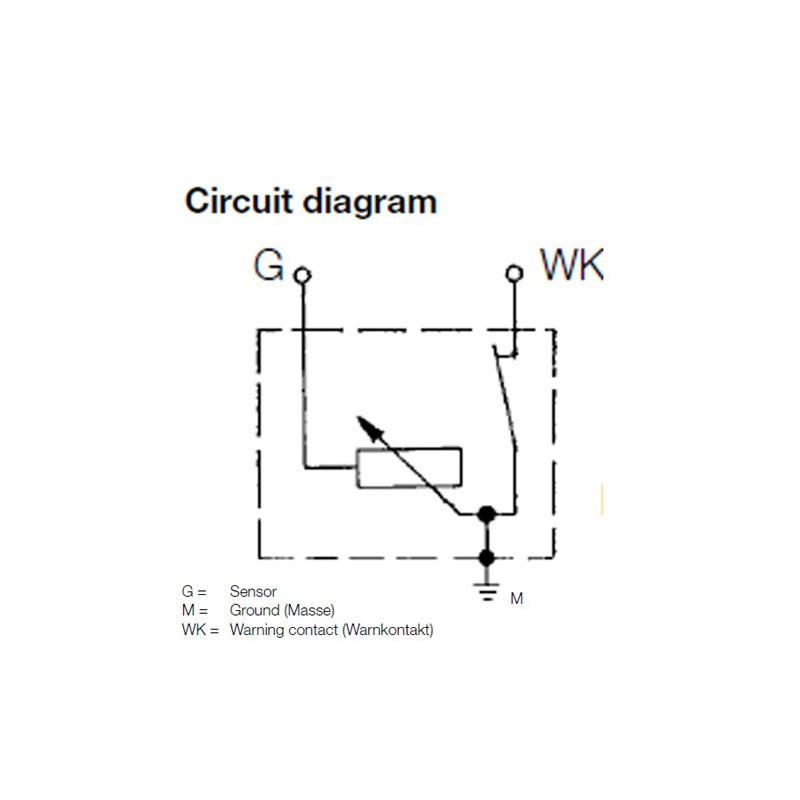

• Type of grounding: Grounded through the probe body
• Measurement connection: M4 plastic knurled nut
• Alarm contact connection: M4 plastic knurled nut

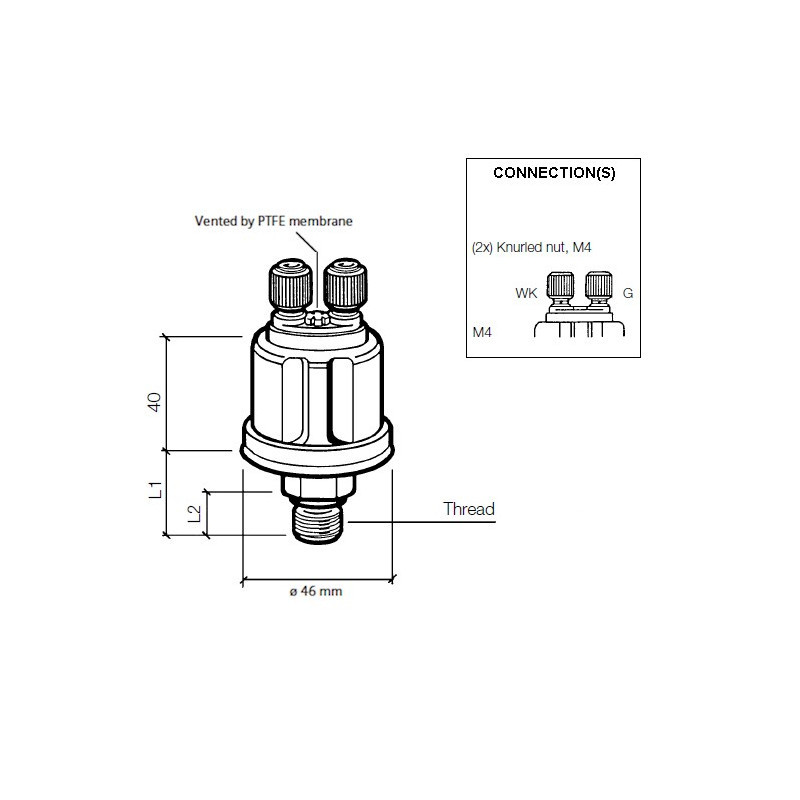

• Threaded length L2: 12 mm
• Thread and hex length L1: 20.5 mm
• Contact operation: Closes when pressure drops

Compatibility and Mounting

Check the M12×150 thread, the resistance curve, and the connection before mounting. The body must maintain electrical continuity with the circuit ground.
